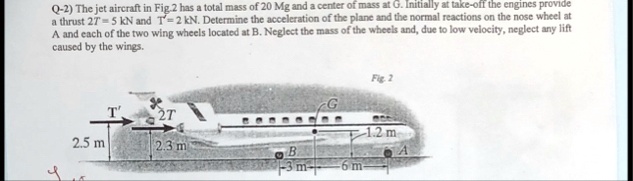

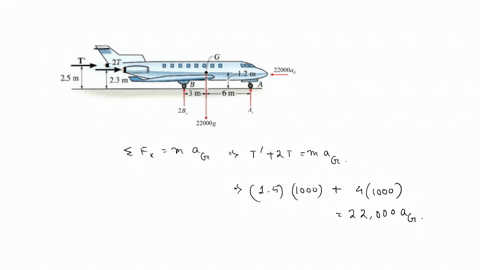

Q-2) The jet aircraft in Fig.2 has a total mass of 20 Mg and a center of mass at G. Initially at take-off the engines provide a thrust $2T = 5$ kN and $T' = 2$ kN. Determine the acceleration of the plane and the normal reactions on the nose wheel at A and each of the two wing wheels located at B. Neglect the mass of the wheels and, due to low velocity, neglect any lift caused by the wings. Fig. 2 G T' 2.5 m 2T 2.3 m 1.2 m B A 3 m 6 m A
