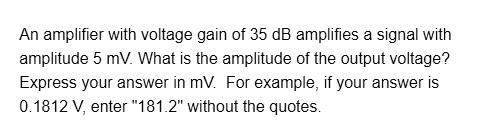

An amplifier with voltage gain of 35 dB amplifies a signal with amplitude 5 mV. What is the amplitude of the output voltage? Express your answer in mV. For example, if your answer is 0.1812 V, enter "181.2" without the quotes.
Added by Danielle L.
Close
Step 1
To convert from decibels to a linear scale, we use the formula: Linear Gain = 10^(dB/20) In this case, the voltage gain is 35 dB. Linear Gain = 10^(35/20) Linear Gain = 10^(1.75) Linear Gain ≈ 56.2341 Show more…
Show all steps
