Question

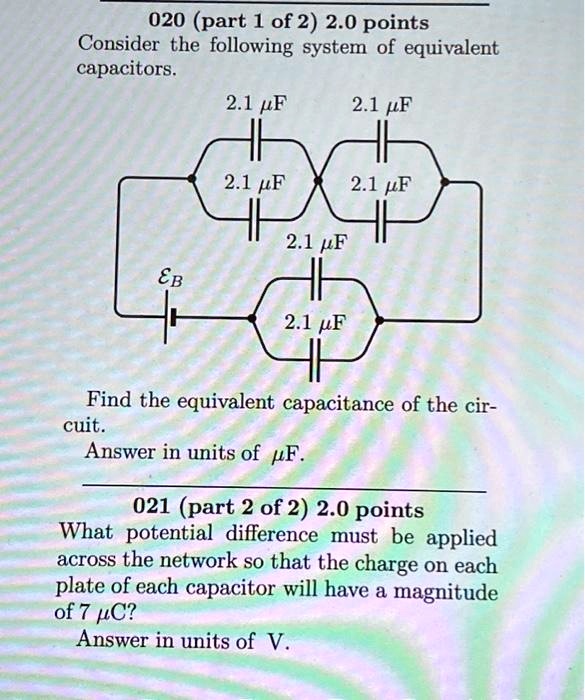

Consider the following system of equivalent capacitors. 2.1 ?F 2.1 ?F 2.1 ?F 2.1 ?F EB 2.1 ?F 2.1 ?F Find the equivalent capacitance of the circuit. Answer in units of ?F. What potential difference must be applied across the network so that the charge on each plate of each capacitor will have a magnitude of 7 ?C? Answer in units of V.

          Consider the following system of equivalent capacitors.
2.1 ?F 2.1 ?F
2.1 ?F 2.1 ?F
EB
2.1 ?F
2.1 ?F
Find the equivalent capacitance of the circuit.
Answer in units of ?F.
What potential difference must be applied across the network so that the charge on each plate of each capacitor will have a magnitude of 7 ?C?
Answer in units of V.

Consider the following system of equivalent capacitors.
2.1 ?F 2.1 ?F
2.1 ?F 2.1 ?F
EB
2.1 ?F
2.1 ?F
Find the equivalent capacitance of the circuit.
Answer in units of ?F.
What potential difference must be applied across the network so that the charge on each plate of each capacitor will have a magnitude of 7 ?C?
Answer in units of V.

Added by Daniel A.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Eduard Sanchez

Step 1

The description does not provide a visual diagram, but based on the information given, we can infer that there are six capacitors, each with a capacitance of 2.1F. Without a specific arrangement, we'll assume a common configuration where capacitors are combined in Show more…

Show all steps

Thanks for your feedback!

Consider the following system of equivalent capacitors. Find the equivalent capacitance of the circuit. Answer in units of μF. What potential difference must be applied across the network so that the charge on each plate of each capacitor will have a magnitude of 7 αC? Answer in units of V.
