00:01

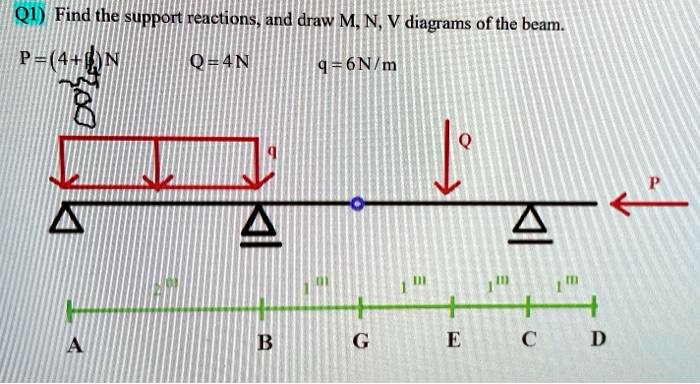

Hello students, from the question we can assume, summation of f of x is equal to 0, as per that we get h a is equal to 5 and summation of f of y is equal to 0, from that we get the equation v c plus v a plus v b is equal to 6 plus 2 plus 4 is equal to 16.
00:35
Next summation of m g is equal to 0, on the left hand side, this is on left hand side, we will get the equation v a plus 3 plus v b plus 1 is equal to 6 into 2 into 2.
01:01
Next we have to consider summation of m g is equal to 0, on right hand side, we will get the equation v c into 2, v c into 2 is equal to 4 into 1 that gives us v c is equal to 2, we get 3 into, on solving, on solving we get v a is equal to 5 and v c is equal to 9.
01:49
From this we have to draw the diagram, first we will consider axial diagram, for that we will get, this is 5, 5 and here we consider a and d, so this is compression, compression...
