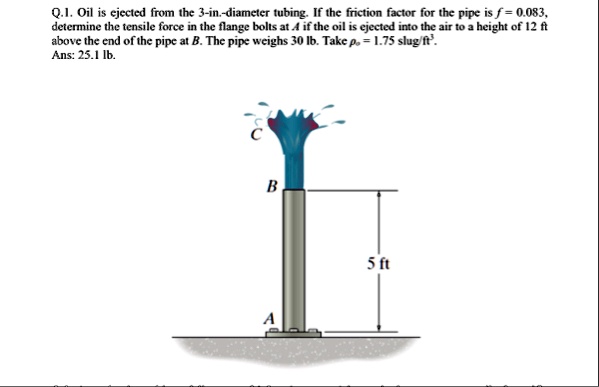

Q.1. Oil is ejected from the 3-in.-diameter tubing. If the friction factor for the pipe is $f = 0.083$, determine the tensile force in the flange bolts at A if the oil is ejected into the air to a height of 12 ft above the end of the pipe at B. The pipe weighs 30 lb. Take $\rho_o = 1.75 \text{ slug/ft}^3$. Ans: 25.1 lb. C B A 5 ft

Name: q1 oil is ejected from the 3 in diameter tubing if the friction factor for the pipe is f 0083 determine the tensile force in the flange bolts at a if the oil is ejected into the air to a hei 46592
Uploaded: 2021-08-25T18:25:25-08:00
Duration: 4 min 45 s
Channel: Chai Santi
Description: q1 oil is ejected from the 3 in diameter tubing if the friction factor for the pipe is f 0083 determine the tensile force in the flange bolts at a if the oil is ejected into the air to a hei 46592

          Q.1. Oil is ejected from the 3-in.-diameter tubing. If the friction factor for the pipe is $f = 0.083$, determine the tensile force in the flange bolts at A if the oil is ejected into the air to a height of 12 ft above the end of the pipe at B. The pipe weighs 30 lb. Take $\rho_o = 1.75 \text{ slug/ft}^3$. Ans: 25.1 lb.
C
B
A
5 ft

q1 oil is ejected from the 3 in diameter tubing if the friction factor for the pipe is f 0083 determine the tensile force in the flange bolts at a if the oil is ejected into the air to a hei 46592

Added by Aaron S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Chai Santi

08/25/2021

Step 1

Given: - Diameter of tubing, $D = 3 \text{ in} = 0.25 \text{ ft}$ - Friction factor, $f = 0.083$ - Height oil is ejected into the air above B, $h_C = 12 \text{ ft}$ - Weight of the pipe, $W_{pipe} = 30 \text{ lb}$ - Density of oil, $\rho_o = 1.75 \text{ Show more…
