Q1- Referring to the system shown below, determine the values of K and k such that the system has a damping ratio ? of 0.7 and an undamped natural frequency ?n of 4 rad/sec.
Added by Matthew N.
Close
Step 1
First, we need to find the transfer function of the given system. The transfer function is given by: T(s) = C(s) / R(s) = K / [(s + 2)(s)] Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 86 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A damped system has the following parameters: $m=2 \mathrm{~kg}, c=3 \mathrm{~N}-\mathrm{s} / \mathrm{m},$ and $k=40 \mathrm{~N} / \mathrm{m} .$ Determine the natural frequency, damping ratio, and the type of response of the system in free vibration. Find the amount of damping to be added or subtracted to make the system critically damped.

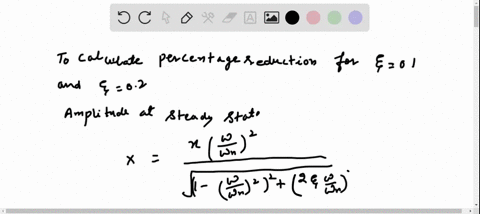

A viscously damped spring-mass system is forced harmonically at the undamped natural frequency $\left(\omega / \omega_{n}=1\right) .$ If the damping ratio $\zeta$ is doubled from 0.1 to $0.2,$ compute the percentage reduction $R_{1}$ in the steady-state amplitude. Compare with the result $R_{2}$ of a similar calculation for the condition $\omega / \omega_{n}=2$ Verify your results by inspecting Fig. $8 / 11$
Using the model we developed in class for an oscillating system of three springs and two masses, find the so called "natural frequencies" at which the system with the following properties will oscillate: m1 = m2 = 1 k1 = k3 = 1 k2 = 4.
