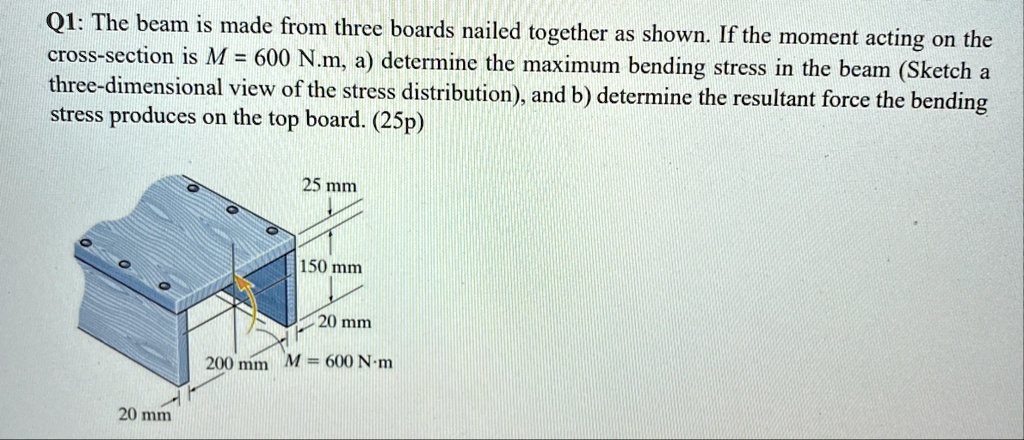

Q1: The beam is made from three boards nailed together as shown. If the moment acting on the cross-section is $M = 600$ N.m, a) determine the maximum bending stress in the beam (Sketch a three-dimensional view of the stress distribution), and b) determine the resultant force the bending stress produces on the top board. (25p) 25 mm 150 mm 20 mm 200 mm $M = 600$ N·m 20 mm

Name: q1 the beam is made from three boards nailed together as shown if the moment acting on the cross section is m 600 nm a determine the maximum bending stress in the beam sketch a three dimensi 34888
Uploaded: 2023-11-18T13:43:56-08:00
Duration: 2 min 22 s
Channel: Adi S
Description: q1 the beam is made from three boards nailed together as shown if the moment acting on the cross section is m 600 nm a determine the maximum bending stress in the beam sketch a three dimensi 34888

          Q1: The beam is made from three boards nailed together as shown. If the moment acting on the cross-section is $M = 600$ N.m, a) determine the maximum bending stress in the beam (Sketch a three-dimensional view of the stress distribution), and b) determine the resultant force the bending stress produces on the top board. (25p)
25 mm
150 mm
20 mm
200 mm
$M = 600$ N·m
20 mm

q1 the beam is made from three boards nailed together as shown if the moment acting on the cross section is m 600 nm a determine the maximum bending stress in the beam sketch a three dimensi 34888

Added by Cheryl P.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

11/18/2023

Step 1

The cross-section consists of three rectangular boards. Let's define a reference axis at the bottom of the cross-section. Board 1 (bottom board): Width $b_1 = 200$ mm Height $h_1 = 20$ mm Area $A_1 = b_1 \times h_1 = 200 \times 20 = 4000 \text{ mm}^2$ Centroid Show more…
