Q1\ The screw eye in Figure is subjected to two forces, F1 and F2. Determine the angle B for the force F1 so that the resultant R of the system will be 100N with angle 30° from x-axis (2.5 mark) $F_2 = 75N$ $R = 100N$ $F_1 = 71.5N$
Added by Felix H.
Close
Step 1
$F_{1x} = F_1 \cos B$ $F_{1y} = F_1 \sin B$ $F_{2x} = F_2 \cos 15^\circ = 75 \cos 15^\circ$ $F_{2y} = F_2 \sin 15^\circ = 75 \sin 15^\circ$ The resultant force R has components: $R_x = 100 \cos 30^\circ$ $R_y = 100 \sin 30^\circ$ Show more…
Show all steps
Your feedback will help us improve your experience
Nishant Kumar and 84 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
answer using engineering solution process include illustration given required and solution
Nishant K.

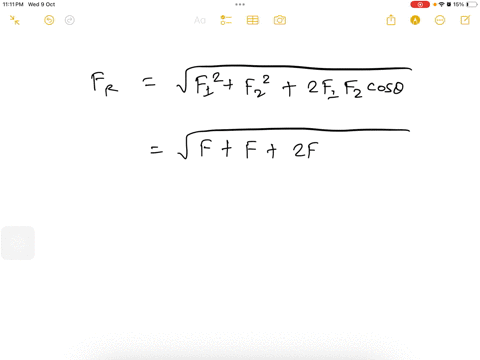

Two forces act on the screw eye. If $F_{1}=400 \mathrm{N}$ and $F_{2}=600 \mathrm{N},$ determine the angle $\theta\left(0^{\circ} \leq \theta \leq 180^{\circ}\right)$ between them, so that the resultant force has a magnitude of $F_{R}=800 \mathrm{N}$
