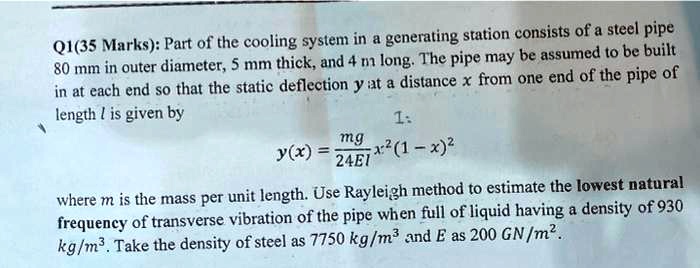

Q1(35 Marks): Part of the cooling system in a generating station consists of a steel pipe 80 mm in outer diameter, 5 mm thick, and 4 m long. The pipe may be assumed to be built in at each end so that the static deflection y at a distance x from one end of the pipe of length l is given by y(x) = frac{mg}{24EI}x^2(l - x)^2 where m is the mass per unit length. Use Rayleigh method to estimate the lowest natural frequency of transverse vibration of the pipe when full of liquid having a density of 930 kg/m3. Take the density of steel as 7750 kg/m3 and E as 200 GN/m2.
Added by Francisco H.
Close
Step 1
Use the Rayleigh Method to estimate the lowest natural frequency of transverse vibration of the pipe when full of liquid having a density of 930 kg/m3. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 60 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

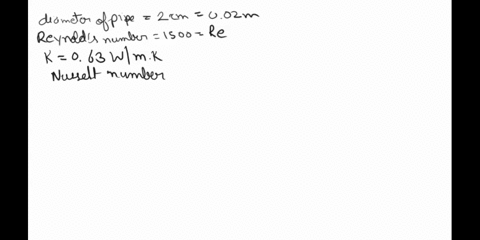

3.3 Water flows in a pipe with an ID of 2 cm and is heated from the pipe walls with a uniform heat flux. The flow is fully developed and laminar with Re = 1500. You may assume the thermal conductivity of water to be 0.63 W/m-K. What is the Nusselt number for the water flowing inside the pipe? a) 9.156 W/m2-K b) 4.36 c) 3.66 d) 7.686 W/m2-K 3.4 Which of the below conditions is NOT one of the boundary layer assumptions? a) Constant density b) ∂T/∂y = 0 c) Steady state d) ∂u/∂x << ∂u/∂y
Adi S.
5. Water flowing at a rate of 0.02 kg/s is heated from 20 to 60°C in a horizontal pipe (inside diameter 2.5 cm). The inside pipe surface temperature is 90°C. Estimate the convective heat-transfer coefficient if the pipe is 1 m long. Known: Density of water is 992.2 kg/m³, Specific heat of water is 4.175 kJ/(kg °C), Thermal conductivity of pipe is 0.633 W/(m °C), Viscosity of fluid in the pipe is 658.026 x 10⁻⁶ Pa s, Viscosity of fluid at the wall (90°C) is 308.909 x 10⁻⁶ Pa s
Sri K.
3-127 Pipes with inner and outer diameters of 50 mm and 60 mm, respectively, are used for transporting superheated vapor in a manufacturing plant. The pipes with thermal conductivity of 16 W/m-K are connected together by flanges with a combined thickness of 20 mm and an outer diameter of 90 mm. The air condition surrounding the pipes has a temperature of 25°C and a convection heat transfer coefficient of 10 W/m^2-K. If the inner surface temperature of the pipe is maintained at a constant temperature of 150°C, determine the temperature at the base of the flange and the rate of heat loss through the flange.
