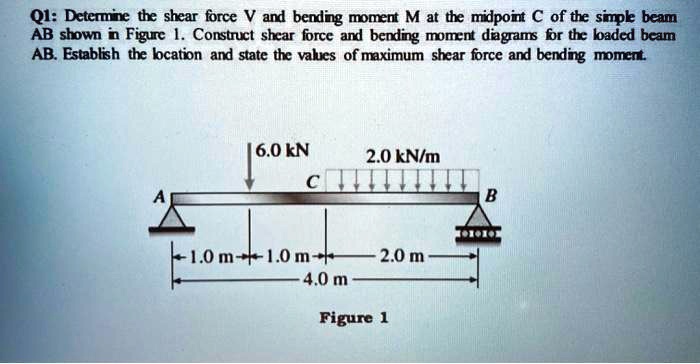

Q1: Determine the shear force V and bending moment M at the midpoint C of the simple beam AB shown in Figure 1. Construct shear force and bending moment diagrams for the loaded beam AB. Establish the location and state the values of maximum shear force and bending moment.
Added by Blake L.
Close
Step 1
For beam AB length L, with given loads (use provided figure values): reactions RA and RB found from equilibrium: ΣM_A = 0 → RB = (sum of moments of loads about A)/L; ΣV = 0 → RA = total load − RB. Show more…
Show all steps
