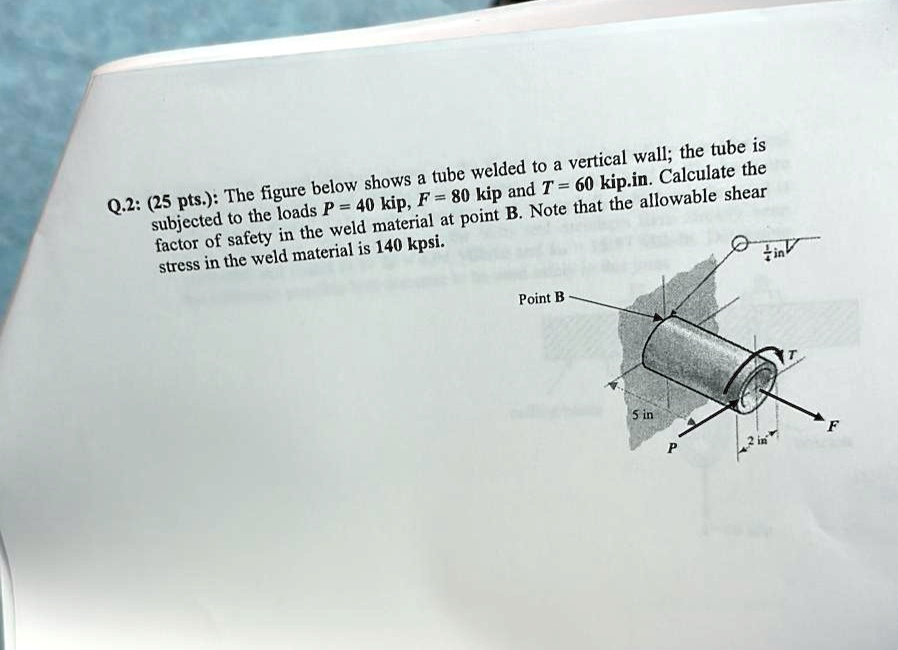

Q.2: (25 pts.): The figure below shows a tube welded to a vertical wall; the tube is subjected to the loads $P = 40$ kip, $F = 80$ kip and $T = 60$ kip.in. Calculate the factor of safety in the weld material at point B. Note that the allowable shear stress in the weld material is 140 kpsi. Point B 5 in P 2 in $\frac{1}{4}$ in T F

Name: q2 25 pts the figure below shows a tube welded to a vertical wall the tube is subjected to the loads p 40 kip f 80 kip and t 60 kipin calculate the factor of safety in the weld material at p 73596
Uploaded: 2025-03-05T22:27:26-08:00
Duration: 3 min 56 s
Channel: Amman Zia
Description: q2 25 pts the figure below shows a tube welded to a vertical wall the tube is subjected to the loads p 40 kip f 80 kip and t 60 kipin calculate the factor of safety in the weld material at p 73596

          Q.2: (25 pts.): The figure below shows a tube welded to a vertical wall; the tube is subjected to the loads $P = 40$ kip, $F = 80$ kip and $T = 60$ kip.in. Calculate the factor of safety in the weld material at point B. Note that the allowable shear stress in the weld material is 140 kpsi.
Point B
5 in
P
2 in
$\frac{1}{4}$ in
T
F

q2 25 pts the figure below shows a tube welded to a vertical wall the tube is subjected to the loads p 40 kip f 80 kip and t 60 kipin calculate the factor of safety in the weld material at p 73596

Added by Dennis S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Amman Zia

03/05/2025

Step 1

Given: Axial load $P = 40$ kip Transverse load $F = 80$ kip Torque $T = 60$ kip.in Allowable shear stress $\tau_{allow} = 140$ kpsi Weld throat thickness $t = \frac{1}{4}$ in (from the figure) Distance from the weld to point B along the tube axis = 5 in (from the Show more…
