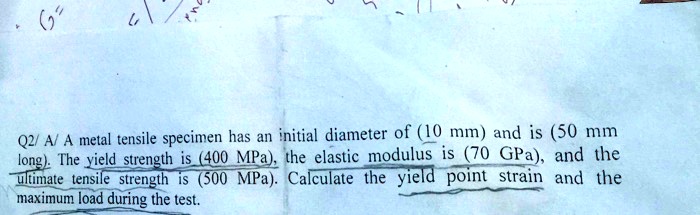

Q2/ A/ A metal tensile specimen has an initial diameter of (10 mm) and is (50 mm long). The yield strength is (400 MPa), the elastic modulus is (70 GPa), and the ultimate tensile strength is (500 MPa). Calculate the yield point strain and the maximum load during the test.
Added by Katherine H.
Close
Step 1
Calculate the cross-sectional area of the specimen: A = πr^2 = π(5mm)^2 = 78.54 mm^2 Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 99 other Chemistry 101 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

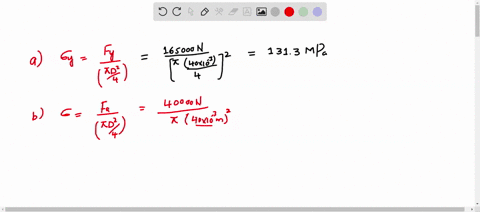

The following observation were made during a tensile test on a mild steel specimen of 40 mm diameter and 200 mm long. Elongation with 40,000 N load (within the limit of proportionality) = 0.0304 mm. yield load = 165,000 N, Maximum load = 245,000 N. Length of the specimen fracture 252 mm, Determine the yield stress, the modulus of elasticity, the ultimate stress and the percentage elongation.
Sikandar B.
A tensile test was performed on a steel specimen having an initial length of 40 cm and an initial diameter of 22 mm. The test results are recorded as follows: P (KN) 4.00 6.25 9.00 9.25 10.00 11.25 13.75 13.25 12.50 10.00 δ (mm) 0.08 0.13 0.18 1.13 5.00 11.00 20.00 30.00 37.50 42.50 Plot the (P - δ) diagram then calculate the following: 1. Proportional limit stress, 2. Yield stress, 3. Ultimate stress, 4. Fracture stress, 5. Modulus of elasticity, 6. Elongation percentage, 7. Modulus of resilience, 8. Modulus of toughness.
Adi S.
A metal alloy has been tested in a tensile test with the following results for the flow curve parameters: strength coefficient is 620 MPa and strain-hardening exponent is 0.27, and elastic modulus of 207 GPa. The same metal is now tested in a compression test in which the starting height of the specimen is 70 mm and its diameter is 25 mm. Assuming that the cross section increases uniformly, determine the following: A) The load required to compress the specimen to a height of 50 mm. B) Engineering stress at the load in part A. C) Final height once the load is released.
Sri K.
