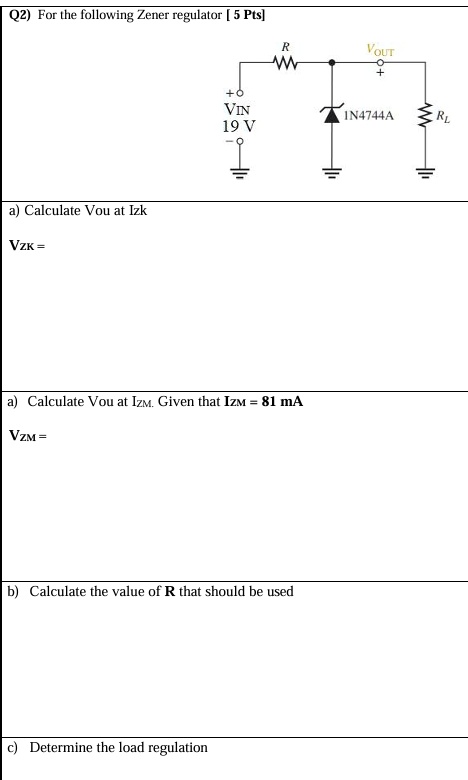

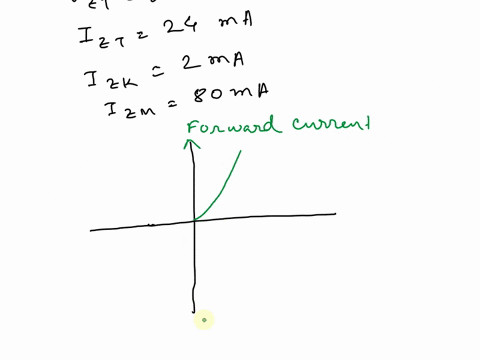

          Q2) For the following Zener regulator [ 5 Pts]
$$R$$
$$V_{OUT}$$
$$V_{IN}$$
19 V
1N4744A
$$R_L$$
a) Calculate Vou at Izk
$$V_{ZK}$$ =
a) Calculate Vou at Izm. Given that $$I_{ZM}$$ = 81 mA
$$V_{ZM}$$ =
b) Calculate the value of R that should be used
c) Determine the load regulation
