Question

Q2: In the circuit shown below use phasor method to find the currents $I_1$, $I_2$, $I_3$, and the average power absorbed/supplied by each element.

          Q2: In the circuit shown below use phasor method to find the currents $I_1$, $I_2$, $I_3$, and the average power absorbed/supplied by each element.
Q2: In the circuit shown below use phasor method to find the currents I1, I2, I3, and the average power absorbed/supplied by each element.

Added by Sandra V.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
Q2: In the circuit shown below, use the phasor method to find the currents I_L, I_Z, and I_S, and the average power absorbed/supplied by each element.
Close icon
Play audio
Feedback
Powered by NumerAI
Jennifer Stoner David Collins
Ivan Kochetkov verified

Anurag Kumar and 82 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-

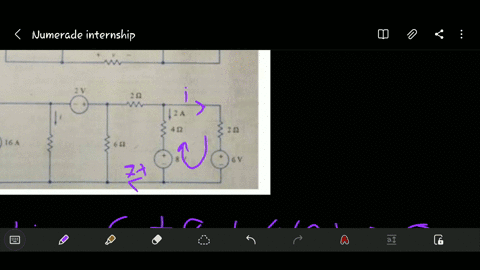

refer-to-the-circuit-depicted-in-fig-1136-find-the-average-power-absorbed-by-each-element

Refer to the circuit depicted in Fig. $11.36 .$ Find the average power absorbed by each element.

Fundamentals of Electric Circuits

1-85

1

Jason J.
1-68

1

Jason J.
*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,430 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,306 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,938 solutions
*

Transcript

-
00:01 Referring to the circuit given in the figure find the average power absorbed by each element.
00:07 First, converting the given data into the frequency domain, 10 cost 2t plus 30 degree is written as 10 angle 30 degree.
00:19 Here, omega equals 2 radian per second.
00:27 1 henry can be written as j omega l and which is equal to.
00:34 To j 2 om and 0 .25 ferrard will be equals to 1 by j omega c this is written as minus j 2 om now the circuit has the current i 1 and i 2 divided i 1 in this direction and i 2 here the 5 ampere is going to going through the 4 om here, the resistances j2 and 2 minus j2 are in parallel.
01:27 So we can write j2 into 2 minus j2 by j2 plus 2 minus j2 which will be equals to 2 plus j2 om.
01:41 The current i is equals 10 angle 30 degree by 4 plus 2...
Need help? Use Ace
Ace is your personal tutor. It breaks down any question with clear steps so you can learn.
Start Using Ace
Ace is your personal tutor for learning
Step-by-step explanations
Instant summaries
Summarize YouTube videos
Understand textbook images or PDFs
Study tools like quizzes and flashcards
Listen to your notes as a podcast
Continue solving this problem
Create a free account to:
  • View full step-by-step solution
  • Ask follow-up questions with Ace AI
  • Save progress and study later
Continue Free
Join the community

18,000,000+

Students on Numerade

Trusted by students at 8,000+ universities

Numerade

Get step-by-step video solution
from top educators

Continue with Clever
or



By creating an account, you agree to the Terms of Service and Privacy Policy
Already have an account? Log In

A free answer
just for you

Watch the video solution with this free unlock.

Numerade

Log in to watch this video
...and 100,000,000 more!


EMAIL

PASSWORD

OR
Continue with Clever
