Q2. Name the parts (A to C) of the universal or series motor shown in the diagram below. B A C (laminated) Field pole bolt
Added by Patrick H.
Close
Step 1
Step 1: The part labeled A in the diagram is the armature, which is the rotating part of the motor. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 63 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.
Question 1: Answer all the following parts: a- Discuss the theory of operation of a DC motor. b- What is the need for a commutator in a DC motor? What are the different types of DC motors? Draw their equivalent circuits, Draw their torque-armature current characteristics, Draw their speed-armature current characteristics, Draw their speed-torque characteristics. d- How can you control their speed? State their applications. Compare between the brushed and brushless DC motors. How do you reduce the speed of a DC motor?
Umar Sohail Q.

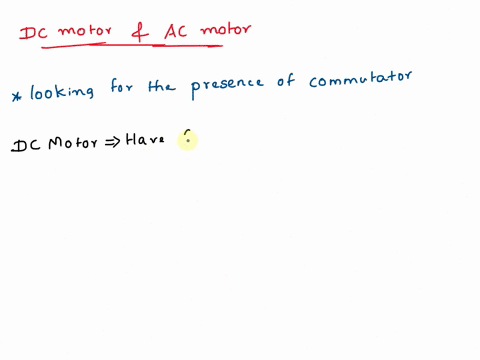

By looking at which part of the motor, it can be easily confirmed that a particular motor is a DC motor? (A) Frame (B) Shaft (C) Commutator (D) Stator (E) None of the above.
