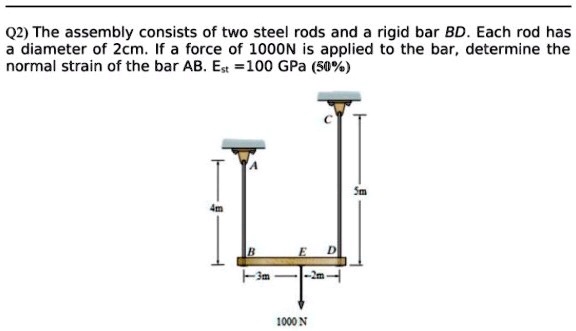

Q2) The assembly consists of two steel rods and a rigid bar BD. Each rod has a diameter of 2cm. If a force of 1000N is applied to the bar, determine the normal strain of the bar AB. Est =100 GPa
Added by Alberto F.
Close
Step 1
Given: Force applied to bar BD = 1000 N Using the principle of equilibrium, we can calculate the force in bar AB: ΣM about B = 0 1000 * 3 - F_AB * 5 = 0 F_AB = 600 N Show more…
Show all steps
Your feedback will help us improve your experience
Kritika Mishra and 81 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The rigid bar is pinned at $A$ and supported by two aluminum rods, each having a diameter of 1 in. and a modulus of elasticity $E_{\mathrm{al}}=10\left(10^{3}\right) \mathrm{ksi} .$ If the bar is initially vertical, determine the displacement of the end $B$ when the force of 2 kip is applied.
Sri K.
A uniformly-distributed load w is supported by a structure consisting of a rigid bar BDF and three rods. Rods (1) and (2) are 14-mm-diameter stainless steel rods that have an elastic modulus of E = 200 GPa. Rod (3) is a 20-mm-diameter bronze rod that has an elastic modulus of E = 104 GPa. Use a = 1.3 m and L = 3.4 m. For a load magnitude of w = 26 kN/m, calculate (a) the normal stress in each rod. (b) the vertical deflection of the rigid bar at F.
Madhur L.

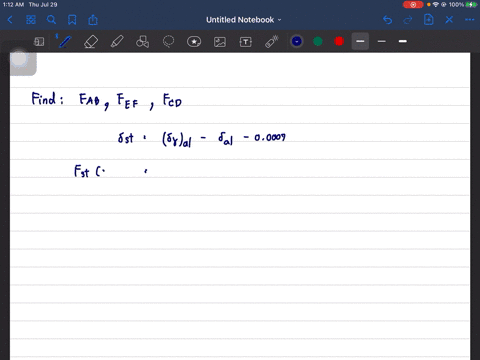

The center rod $C D$ of the assembly is heated from $T_{1}=30^{\circ} \mathrm{C}$ to $T_{2}=180^{\circ} \mathrm{C}$ using electrical resistance heating At the lower temperature $T_{1}$ the gap between $C$ and the rigid bar is $0.7 \mathrm{mm}$. Determine the force in rods $A B$ and $E F$ caused by the increase in temperature. Rods $A B$ and $E F$ are made of stecl, and each has a cross-sectional area of $125 \mathrm{mm}^{2}$. CD is made of aluminum and has a cross-sectional area of $375 \mathrm{mm}^{2}$ \[ E_{\mathrm{st}}=200 \mathrm{GPa}, E_{\mathrm{al}}=70 \mathrm{GPa}, \text { and } \alpha_{\mathrm{al}}=23\left(10^{-6}\right) /^{\mathrm{e}} \mathrm{C} \]
