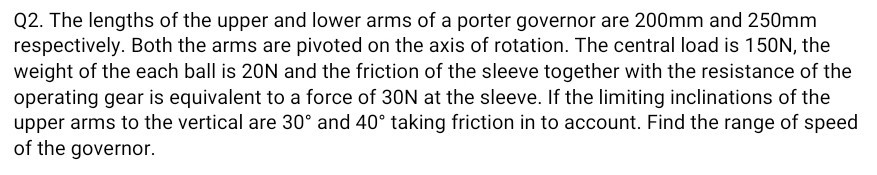

Q2. The lengths of the upper and lower arms of a porter governor are 200 mm and 250 mm respectively. Both the arms are pivoted on the axis of rotation. The central load is 150 N , the weight of the each ball is 20 N and the friction of the sleeve together with the resistance of the operating gear is equivalent to a force of 30 N at the sleeve. If the limiting inclinations of the upper arms to the vertical are \( 30^{\circ} \) and \( 40^{\circ} \) taking friction in to account. Find the range of speed of the governor.
Added by Scott G.
Close
Step 1
For \( 30^{\circ} \) inclination: The height of the governor, h1 = 200 mm * cos(30) + 250 mm * cos(30) = 391.23 mm For \( 40^{\circ} \) inclination: The height of the governor, h2 = 200 mm * cos(40) + 250 mm * cos(40) = 345.49 mm Show more…
Show all steps
Your feedback will help us improve your experience
Anand Jangid and 81 other Microeconomics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

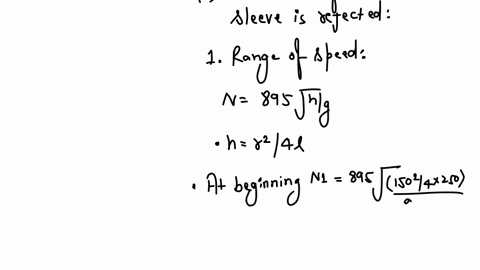

A Porter governor has equal arms each 250 mm long and pivoted on the axis of rotation. Each ball has a mass of 5 kg and the mass of the central load on the sleeve is 25 kg. The radius of rotation of the ball is 150 mm when the governor begins to lift and 200 mm when the governor is at maximum speed. Find the range of speed, sleeve lift, governor effort and power of the governor in the following cases : (i) When the friction at the sleeve is neglected, and (ii) When the friction at the sleeve is equivalent to 10 N.
Anand J.
Adi S.
The Proell governor has equal arms of length 300 mm. The upper and lower ends of the arms are pivoted on the axis of the governor. The extension arms of the lower links are each 80 mm long and parallel to the axis when the radii of rotation of the balls are 150 mm and 200 mm. The mass of each ball is 10 kg and the mass of the central load is 50 kg. Determine the range of speed of the governor.
