Q2/Consider a cylindrical nickel wire 2.0 mm (0.08 in.) in diameter and 3x10^3 mm (1200 in.) long. Calculate its elongation when a load of 300 N (67 lb) is applied. Assume that the deformation is totally elastic.
Added by Kelly G.
Step 1
First, we need to find the cross-sectional area (A) of the wire. The wire has a diameter of 2.0 mm, so the radius (r) is 1.0 mm. The cross-sectional area of a cylinder is given by the formula A = πr^2. A = π(1.0 mm)^2 = π mm^2 Show more…
Show all steps
Close
Your feedback will help us improve your experience
Madhur L and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider a cylindrical titanium wire 3.0 mm (0.12 in.) in diameter and 2.5 x 10^4 mm (1000 in.) long. Calculate its elongation when a load of 500 N (112 lbf) is applied. Assume that the deformation is totally elastic (E titanium = 107 GPa).
Adi S.
Consider a cylindrical specimen of a steel alloy (Figure $6.21) 8.5 \mathrm{mm}(0.33 \text { in. })$ in diameter and $80 \mathrm{mm}(3.15 \text { in. })$ long that is pulled in tension. Determine its elongation when a load of $65,250 \mathrm{N}\left(14,500 \mathrm{lb}_{\mathrm{f}}\right)$ is applied.

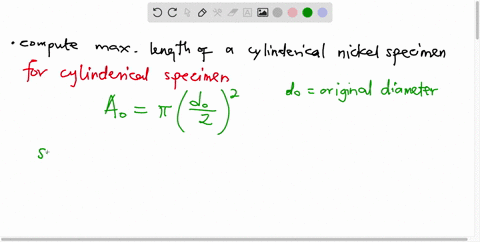

A cylindrical specimen of a nickel alloy having an elastic modulus of 207 GPa and an original diameter of 10.2 mm (0.40 in.) will experience only elastic deformation when a tensile load of 8900 N (2000 lb ) is applied. Compute the maximum length of the specimen before deformation if the maximum allowable elongation is 0.25 mm (0.010 in.).
