The system is the bar AC.

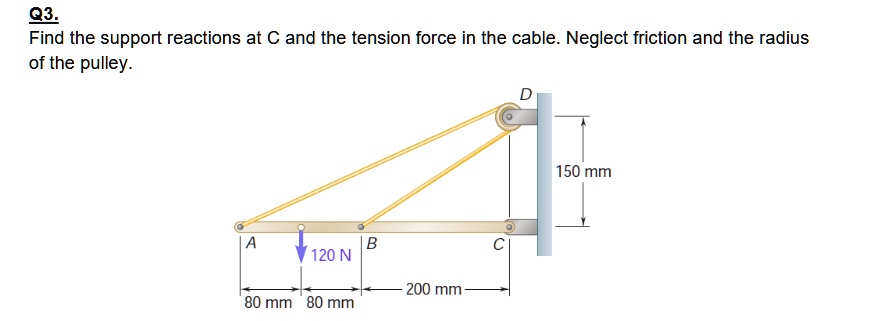

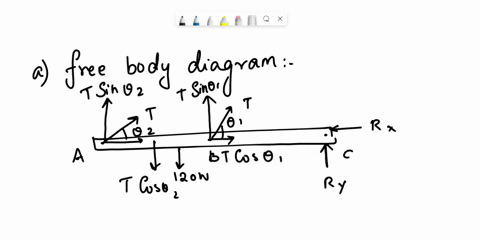

Forces acting on the bar:
1. Applied load: 120 N downwards at a point 80 mm from A.

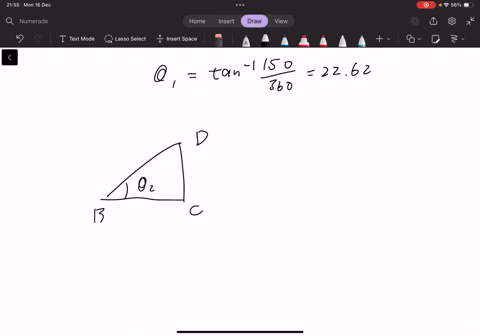

2. Tension in the cable: The cable goes from A to D and from B to D. Since the pulley is frictionless and its radius is neglected, the tension in the
