Q3: A lossy transmission line has a complex propagation constant ofy 0.012+5.8 (Im). If the voltage is 12V at the generator port, what will be the voltage magnitude when it propagates a distance of 12m?
Added by Barbara C.
Step 1
In this case, V0 = 12V, γ = 0.012 + 5.8j (where j is the imaginary unit), and x = 12m. Substituting these values into the formula, we get: V = 12 * e^(-(0.012 + 5.8j) * 12) To simplify this, we can separate the real and imaginary parts of the exponent: V = 12 Show more…
Show all steps
Your feedback will help us improve your experience
Umar Sohail Qureshi and 66 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A 7 m long lossless transmission line given in Fig. 1 is fed by a generator having voltage source of vg(t) = 0.4 sin(π × 10^9t + 30°) and generator impedance of ZG = 40 Ω. The characteristic impedance of the transmission line is 100 Ω, relative permittivity of the dielectric material is εr = 4 and it is terminated with a load ZL = (25 + j70) Ω. (a) Input voltage, Vin (5pts); (b) Input current, Iin (5pts); (c) Load voltage, VL (5pts); (d) Load current, IL (5pts); (e) Obtain v(z, t); (10 pts) (f) Obtain i(z, t). (10 pts)
Sri K.
Consider a 75-̐ lossless transmission line that is 250 m in length with a dielectric material in the TL characterized by ̕r = 1.44 and an impedance of 75 ̐. It is connected to a generator of 1 V and 500 kHz with an internal impedance of 75 ̐. If the line is terminated by a 100 ̐ resistor calculate: (a) Ṽ_Zg the voltage across Zg, Ṽ_i, and Ṽ_L. (b) Ṽ and Ḡ at the midpoint of the transmission line. Show that the ratio of Ṽ and Ḡ is real and corresponds the expected impedance at a voltage minima.
Madhur L.

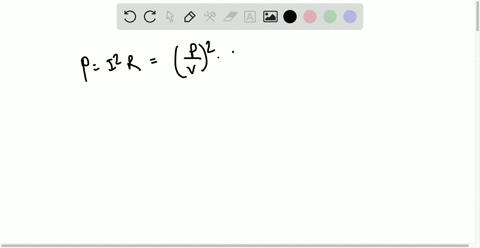

A transmission line that has a resistance per unit length of $4.50 \times 10^{-4} \Omega / \mathrm{m}$ is to be used to transmit 5.00 $\mathrm{MW}$ over 400 miles $\left(6.44 \times 10^{5} \mathrm{m}\right) .$ The output voltage of the generator is 4.50 $\mathrm{kV}$ . (a) What is the line loss if a transformer is used to step up the voltage to 500 $\mathrm{kV} ?$ (b) What fraction of the input power is lost to the line under these circumstances? (c) What If? What difficulties would be encountered in attempting to transmit the 5.00 $\mathrm{MW}$ at the generator voltage of 4.50 $\mathrm{kV}$ ?
