Q3. The source is connected across a series RC ac circuit with R = 4.2 Ohm and Xc = 1/wC = 3.1 Ohm. 3a) Find the magnitude of impedance of the series combination (Unit: Ohm) 5.220 Ohm You are correct. Your receipt no. is 158-5185 Previous Tries 3b) Find the phase angle of impedance of the series combination (Unit: deg) -36.431 deg You are correct. Your receipt no. is 158-4469 Previous Tries 3c) Calculate the current I at an angle of 0° (Unit: A) 17.241 A You are correct. Your receipt no. is 158-527 Previous Tries 3d) Calculate the amplitude of voltage VR across the resistor (Unit: V) 72.412 V You are correct. Your receipt no. is 158-8256 Previous Tries 3e) Calculate the phase angle of voltage VR across the resistor (Unit: deg) 36.431 deg Submit Answer Incorrect. Tries 2/8 Previous Tries 3f) Calculate the magnitude of voltage Vc across the capacitor (Unit: V) Submit Answer Tries 0/6 3g) Calculate the phase angle of voltage Vc across the capacitor (Unit: deg) Submit Answer Tries 0/9

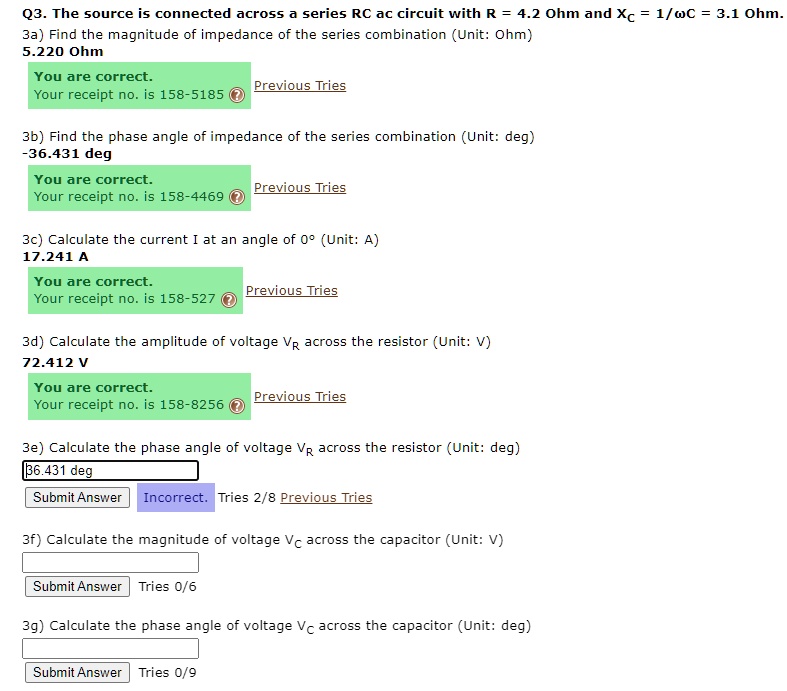

          Q3. The source is connected across a series RC ac circuit with R = 4.2 Ohm and Xc = 1/wC = 3.1 Ohm.
3a) Find the magnitude of impedance of the series combination (Unit: Ohm)
5.220 Ohm
You are correct.
Your receipt no. is 158-5185
Previous Tries
3b) Find the phase angle of impedance of the series combination (Unit: deg)
-36.431 deg
You are correct.
Your receipt no. is 158-4469
Previous Tries
3c) Calculate the current I at an angle of 0° (Unit: A)
17.241 A
You are correct.
Your receipt no. is 158-527
Previous Tries
3d) Calculate the amplitude of voltage VR across the resistor (Unit: V)
72.412 V
You are correct.
Your receipt no. is 158-8256
Previous Tries
3e) Calculate the phase angle of voltage VR across the resistor (Unit: deg)
36.431 deg
Submit Answer Incorrect. Tries 2/8 Previous Tries
3f) Calculate the magnitude of voltage Vc across the capacitor (Unit: V)
Submit Answer Tries 0/6
3g) Calculate the phase angle of voltage Vc across the capacitor (Unit: deg)
Submit Answer Tries 0/9

Q3. The source is connected across a series RC ac circuit with R = 4.2 Ohm and Xc = 1/wC = 3.1 Ohm.
3a) Find the magnitude of impedance of the series combination (Unit: Ohm)
5.220 Ohm
You are correct.
Your receipt no. is 158-5185
Previous Tries
3b) Find the phase angle of impedance of the series combination (Unit: deg)
-36.431 deg
You are correct.
Your receipt no. is 158-4469
Previous Tries
3c) Calculate the current I at an angle of 0° (Unit: A)
17.241 A
You are correct.
Your receipt no. is 158-527
Previous Tries
3d) Calculate the amplitude of voltage VR across the resistor (Unit: V)
72.412 V
You are correct.
Your receipt no. is 158-8256
Previous Tries
3e) Calculate the phase angle of voltage VR across the resistor (Unit: deg)
36.431 deg
Submit Answer Incorrect. Tries 2/8 Previous Tries
3f) Calculate the magnitude of voltage Vc across the capacitor (Unit: V)
Submit Answer Tries 0/6
3g) Calculate the phase angle of voltage Vc across the capacitor (Unit: deg)
Submit Answer Tries 0/9
