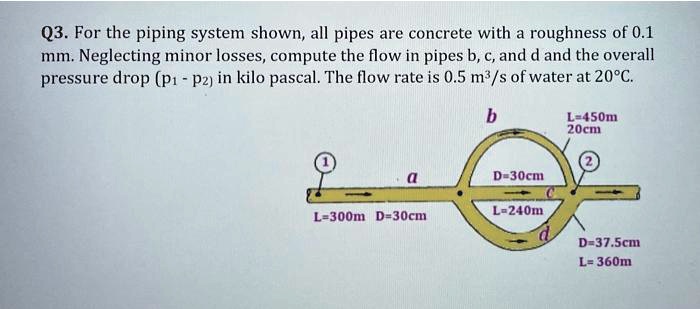

Q3. For the piping system shown, all pipes are concrete with a roughness of 0.1 mm. Neglecting m

Name: Q3. For the piping system shown, all pipes are concrete with a roughness of 0.1 mm. Neglecting minor losses, compute the flow in pipes b, c, and d and the overall pressure drop (p1 - p2) in kilo pascal. The flow rate is 0.5 m³/s of water at 20°C.
Uploaded: 2025-03-23T20:02:33-08:00
Duration: 1 min 32 s
Channel: Lien Le
Description: Q3. For the piping system shown, all pipes are concrete with a roughness of 0.1 mm. Neglecting minor losses, compute the flow in pipes b, c, and d and the overall pressure drop (p1 - p2) in kilo pascal. The flow rate is 0.5 m³/s of water at 20°C.

Question

David Morabito · Accepted Answer

First, we need to calculate the Reynolds number for each pipe to determine the flow regime. The

Question

Q3. For the piping system shown, all pipes are concrete with a roughness of 0.1 mm. Neglecting minor losses, compute the flow in pipes b, c, and d and the overall pressure drop ($p_1 - p_2$) in kilo pascal. The flow rate is 0.5 m³/s of water at 20°C.
