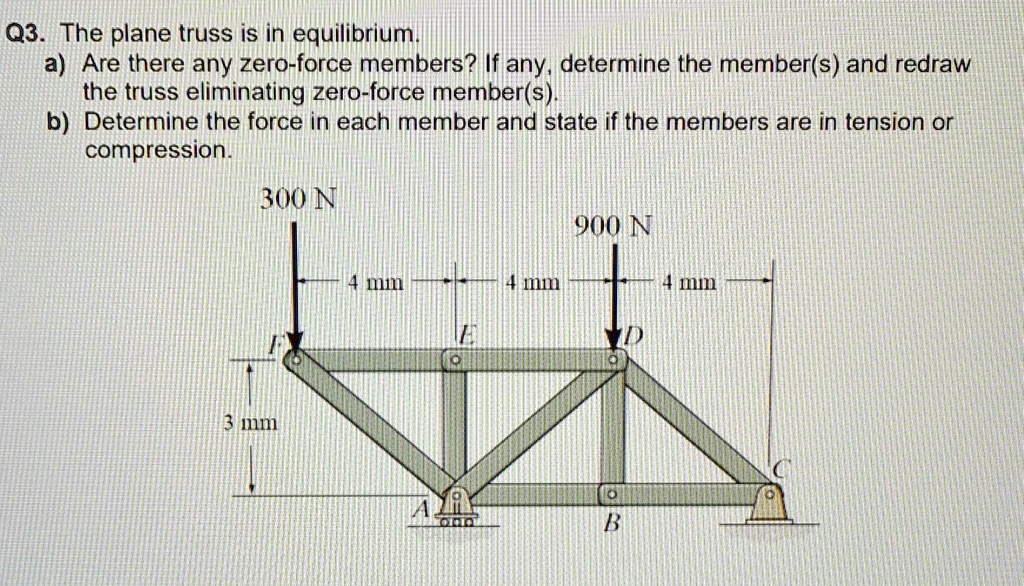

Q3. The plane truss is in equilibrium. a) Are there any zero-force members? If any, determine the member(s) and redraw the truss eliminating zero-force member(s). b) Determine the force in each member and state if the members are in tension or compression. 300 N 900 N 4 mm 4 mm 4 mm 3 mm D B

          Q3. The plane truss is in equilibrium.
a) Are there any zero-force members? If any, determine the member(s) and redraw
the truss eliminating zero-force member(s).
b) Determine the force in each member and state if the members are in tension or
compression.
300 N
900 N
4 mm
4 mm
4 mm
3 mm
D
B

Q3. The plane truss is in equilibrium.
a) Are there any zero-force members? If any, determine the member(s) and redraw
the truss eliminating zero-force member(s).
b) Determine the force in each member and state if the members are in tension or
compression.
300 N
900 N
4 mm
4 mm
4 mm
3 mm
D
B
