Q4. Sketch the acceleration vector diagram for the engine mechanism below in fig. 4, clearly indicating the vector directions.
Added by David B.
Close
Step 1
Call O the crank centre, A the crank-pin (pin that connects to the connecting rod), and B the slider (piston) which is constrained to move in the horizontal guide. The crank OA rotates about O with angular speed ω (assume ω constant unless an angular acceleration Show more…
Show all steps
Your feedback will help us improve your experience
Sarita Rana and 86 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The top in the figure shown below is rotating about the z axis at ω1 = 0.5 rad/s, while it is spinning at ω2 = 4 rad/s. Calculate the magnitude of the top's angular acceleration α at the instance shown. Give the answer in units of rad/s2
Timothy J.
Figure 1 shows a right-angle bar which rotates clockwise with an angular velocity that is decreasing at the rate of 4 rad/s^2. If at this instant the angular velocity is 2 rad/s, 1. Write the vector expressions for the linear velocity and acceleration of point A. 2. Find the magnitudes of velocity and acceleration of point A. - Find the position vector rA. - Use the right-hand rule to determine the directions of ω and α. 0.3 m 0.4 m Figure 1
Penny R.

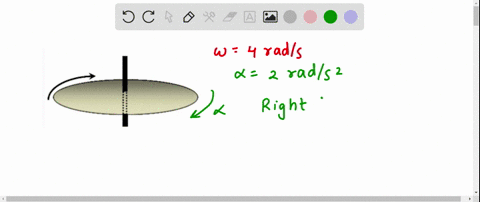

Up Left Right Down A spinning disk is rotating at a rate of 4 rad/s in the clockwise direction as shown in the figure. If the disk is speeding up at a rate of 2 rad/s^2, what is the direction of the angular acceleration vector? left right up down
Sufiyan A.
