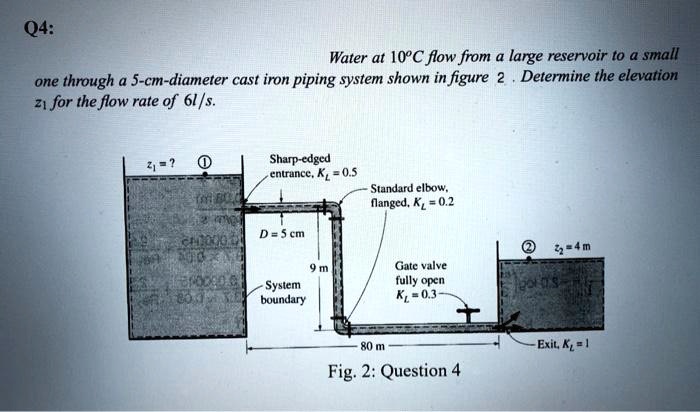

Q4: Water at 10°C flow from a large reservoir to a small one through a 5-cm-diameter cast iron piping system shown in figure 2. Determine the elevation z1 for the flow rate of 6 l/s. z1 = ? Sharp-edged entrance, KL = 0.5 Standard elbow, flanged, KL = 0.2 D = 5 cm z2 = 4 m 9 m System boundary Gate valve fully open KL = 0.3 80 m Exit, KL = 1 Fig. 2: Question 4
Added by Robert M.
Close
Step 1
First, we need to determine the velocity of the water flow. We can use the equation Q = A * V, where Q is the flow rate, A is the cross-sectional area of the pipe, and V is the velocity of the water. Given that the flow rate is 6 l/s, we need to convert it to Show more…
Show all steps
