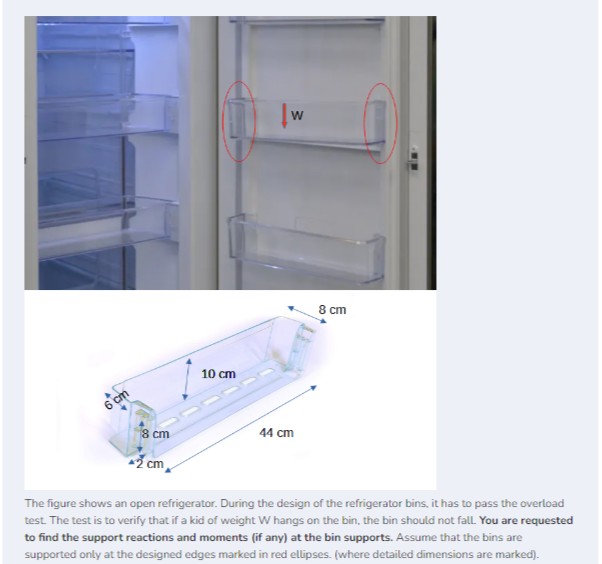

The figure shows an open refrigerator. During the design of the refrigerator bins, it has to pass the overload test. The test is to verify that if a kid of weight. W hangs on the bin, the bin should not fall. You are requested to find the support reactions and moments (if any) at the bin supports. Assume that the bins are supported only at the designed edges marked in red ellipses. (where detailed dimensions are marked).
Added by Krrish G.
Close
Step 1
First, we need to find the total weight acting on the bin. Since the kid's weight is W, the total weight acting on the bin is also W. Show more…
Show all steps
Your feedback will help us improve your experience
Shahab Ullah and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

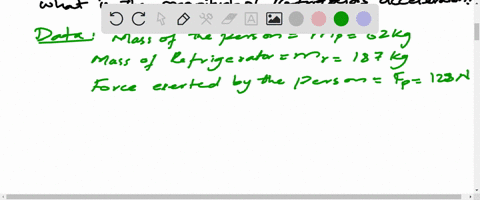

The person shown in Figure 2.1 is pushing on a refrigerator that sits on a level floor. Assume the section of the floor underneath the refrigerator is very slippery so that the only horizontal force on the refrigerator is due to the person. If the force exerted by the person has a magnitude of 120 N and the refrigerator has a mass of 180 kg, what is the magnitude of the refrigerator's acceleration?
Motion, Forces, and Newton’s Laws
Newton’s Laws of Motion

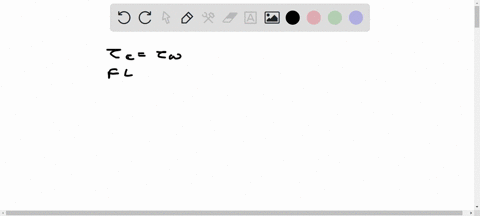

A $100 \mathrm{~kg}$ cubical box lies on a floor. A child pushes horizontally at a top edge. What force magnitude puts the box on the verge of tipping over if there is sufficient friction between it and the floor to prevent sliding?
The shelves in your refrigerator are metal lattices that are held up by being slipped into two small (about 1 inch long) hollow boxes or "pockets" attached to the interior back wall of the refrigerator. See Fig. $13-51$. If you put a full gallon of milk on the shelf, is it more likely to break the pocket if you place it near the back of the refrigerator or near the front? Explain your answer in terms of the physics you have learned. If the milk is the only thing on the shelf, estimate the downward force that the shelf exerts on the front of the pocket when the milk is placed at the front of the shelf.
