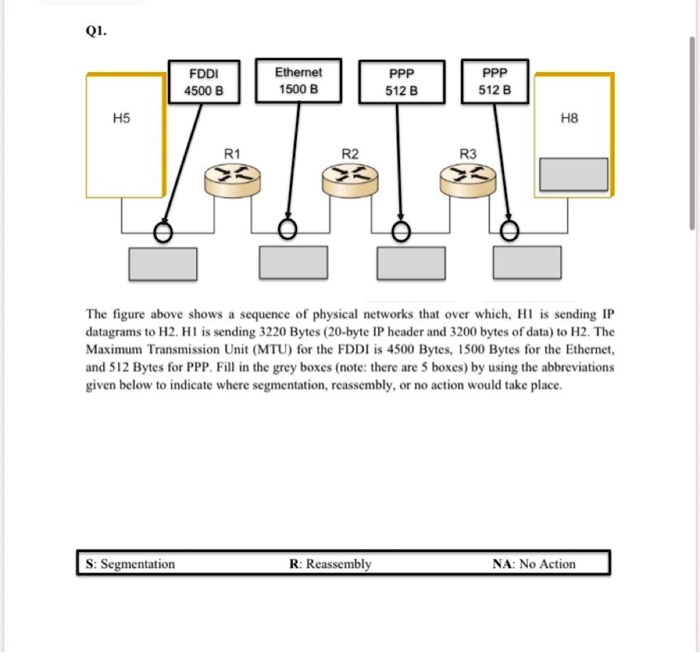

Q1. FDDI 4500 B H5 Ethernet 1500 B PPP 512 B PPP 512 B H8 R1 R2 R3 The figure above shows a sequence of physical networks that over which, H1 is sending IP datagrams to H2. H1 is sending 3220 Bytes (20-byte IP header and 3200 bytes of data) to H2. The Maximum Transmission Unit (MTU) for the FDDI is 4500 Bytes, 1500 Bytes for the Ethernet, and 512 Bytes for PPP. Fill in the grey boxes (note: there are 5 boxes) by using the abbreviations given below to indicate where segmentation, reassembly, or no action would take place. S: Segmentation R: Reassembly NA: No Action
Added by Gregory T.
Close
Step 1
S:Segmentation Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 98 other AP CS educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
An IP datagram 5,400 bytes long with no options arrives at a router, which determines that the next destination is an Ethernet network through which the datagram must travel. Answer the following questions, showing your calculations and reasoning. a) Assume that the router decides to fragment the packet into 4 fragments. Determine a correct size for each fragment and identify the starting byte and ending byte of each fragment (2.5 marks). b) Calculate the fragmentation offset for each fragment (1.5 marks). c) The total number of bytes from all 4 fragments leaving the router will be greater than the initial datagram size that arrived. Explain by how much, and the reason for this. (1 mark).
Akash M.
Madhur L.
Data are transmitted over the Internet in datagrams, which are structured blocks of bits. Each datagram contains header information organized into a maximum of 14 different fields (specifying many things, including the source and destination addresses) and a data area that contains the actual data that are transmitted. One of the 14 header fields is the header length field (denoted by HLEN), which is specified by the protocol to be 4 bits long and that specifies the header length in terms of 32-bit blocks of bits. For example, if HLEN = 0110, the header is made up of six 32-bit blocks. Another of the 14 header fields is the 16-bit-long total length field (denoted by TOTAL LENGTH), which specifies the length in bits of the entire datagram, including both the header fields and the data area. The length of the data area is the total length of the datagram minus the length of the header. a) The largest possible value of TOTAL LENGTH (which is 16 bits long) determines the maximum total length in octets (blocks of 8 bits) of an Internet datagram. What is this value? b) The largest possible value of HLEN (which is 4 bits long) determines the maximum total header length in 32-bit blocks. What is this value? What is the maximum total header length in octets? c) The minimum (and most common) header length is 20 octets. What is the maximum total length in octets of the data area of an Internet datagram? d) How many different strings of octets in the data area can be transmitted if the header length is 20 octets and the total length is as long as possible?
