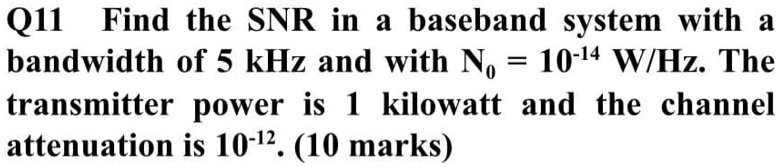

Q11 Find the SNR in a baseband system with a bandwidth of 5 kHz and with N? = 10?¹? W/Hz. The transmitter power is 1 kilowatt and the channel attenuation is 10?¹². (10 marks)
Added by Andrew S.
Close
Step 1
First, we need to find the noise power spectral density (No) in watts per hertz (W/Hz). Given No = 10^{-14} W/MHz, we need to convert it to W/Hz. No = 10^{-14} W/MHz * (1 MHz / 10^6 Hz) = 10^{-20} W/Hz Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 94 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

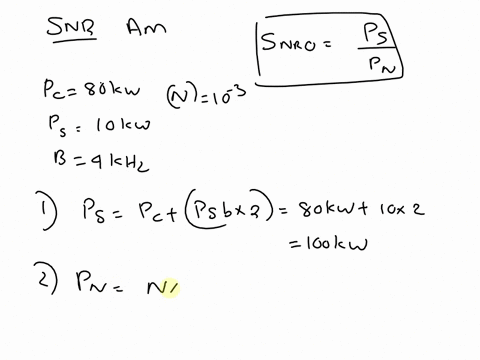

The average noise power per unit bandwidth measured at the front end of an AM receiver is 10^(-3) watt per Hertz. The modulating wave is sinusoidal, with a carrier power of 80 kilowatts, and a sideband power of 10 kilowatts per sideband. The message bandwidth is 4 kHz. Assuming the use of an envelope detector in the receiver, determine the output signal-to-noise ratio of the system. By how many decibels is this system inferior to a DSB-SC modulation system?
Supreeta N.
a. A communication network has a bandwidth of 10 kHz. Calculate the signal-to-noise ratio in dB if the capacity of the channel is 100 Kbps. b. A communications channel with a bandwidth of 4 kHz has a signal power-to-noise ratio of 7. Determine the channel capacity. c. The bandwidth in b above is reduced by 25%. How much should the signal power be increased to maintain the same channel capacity?
Adi S.
A transmitter provides 15 W to an antenna with a 12 dB gain. The receiver antenna has a gain of 3 dB, and the receiver bandwidth is equal to the transmission bit rate. If the receiver system noise power is -122 dBm and the carrier frequency is 1800 MHz, find the maximum sender-receiver separation that will ensure an SNR of 20 dB is achieved for 95% of the time. Assume n = 4, σ = 8 dB, and do = 1 km with free space propagation up to do.
Sri K.
