Question 1 The below interference/diffraction pattern for two slits is observed on a screen that is 1.5 meters from the slits. Here, red light with a wavelength of 700 nm (7.0x10^{-7} m) that is normally incident on these slits yields this pattern. 9 mm 4 mm Using the locations of interference maxima (e.g., the m=2 maxima lies 4.0 mm from the center of the pattern), determine the distance between these two slits (in millimeters). 0.525 Question 2 For the above pattern, using the location of the diffraction minima (the larger bands that over lap the narrower interference patterns), determine the width of the slits (again, in millimeters). Question 3 If the wavelength of the laser light used to create the pattern in the preceding problem had been 525 nm (5.25x10^{-7} m), what then must have been the width of the slits (again, in millimeters)?
Added by Carolina S.
Close
Step 1
We can approximate sin(θ) as y/L, where y is the distance from the center of the pattern to the mth maximum and L is the distance from the slits to the screen. So, we have: d*y/L = m*λ Rearranging for d gives: d = m*λ*L/y Substituting the given values (m=2, Show more…
Show all steps
Your feedback will help us improve your experience
Vishal Gupta and 69 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Coherent light of wavelength 610 nm (1 nm = 10^-9 m) is sent through two parallel slits in an opaque material and projected onto a screen 5.00 m away. Each slit has width D = 2.00 μm (1 μm = 10^-6 m). Their centers are d = 12.0 μm apart. As seen in the class demo and in the figure below, a double-slit interference pattern appears within a single slit diffraction pattern. a) What is the width (in meters) of the central maximum formed by single slit diffraction? Hint: use the width D of each slit for single slit diffraction. b) What are the locations (in meters) of the first two double-slit maxima on each side of the central maximum? Hint: use the slit spacing d for double slit interference. c) How many double slit interference maxima fit into the central diffraction maximum (i.e., how many double slit maxima are there between the dark bands on either side of the central diffraction pattern)?
Sri K.
Diffraction and Interference Combined. Consider the interference pattern produced by two parallel slits of width $a$ and separation $d,$ in which $d=3 a$ . The slits are illuminated by normally incident light of wavelength $\lambda$ . (a) First we ignore diffraction effects due to the slit width. At what angles $\theta$ from the central maximum will the next four maxima in the two-slit interference pattern occur? Your answer will be in terms of $d$ and $\lambda .$ (b) Now we include the effects of diffraction. If the intensity at $\theta=0$ is $I_{0}$ , what is the intensity at each of the angles in part (a)? (c) Which double-slit interference maxima are missing in the pattern? (d) Compare your results to those illustrated in Fig. 36.12 $\mathrm{c}$ . In what ways is your result different?
Ameer S.

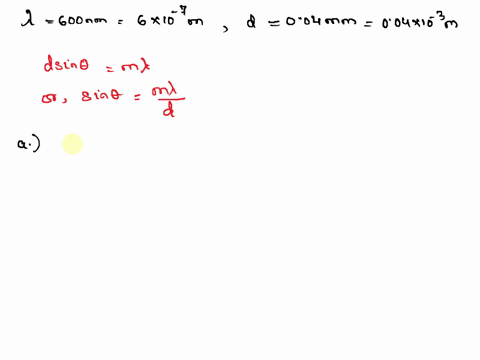

Question 3: In a double slit experiment with 600 nm light, the slits are spaced 0.04 mm apart. (a) At what angle will the first bright fringe be from the central maximum? (b) At what angle will the second dark fringe be from the central maximum? (c) If a screen is placed 6 m away what will be the distance from the central line to the first bright maxima on the screen? (d) What would happen to the angles of these fringes if the wavelength of light was increased? Include a diagram. (e) How many bright fringes and how many dark fringes would be present in an 8° angle? (not including the central maximum) (f) Light with a wavelength of 650 nm is incident on a diffraction grating. If the resolving power of the grating is 1600 for a particular maxima, what is the minimum wavelength difference which could be resolved? (g) Why are diffraction gratings able to resolve different wavelengths?
