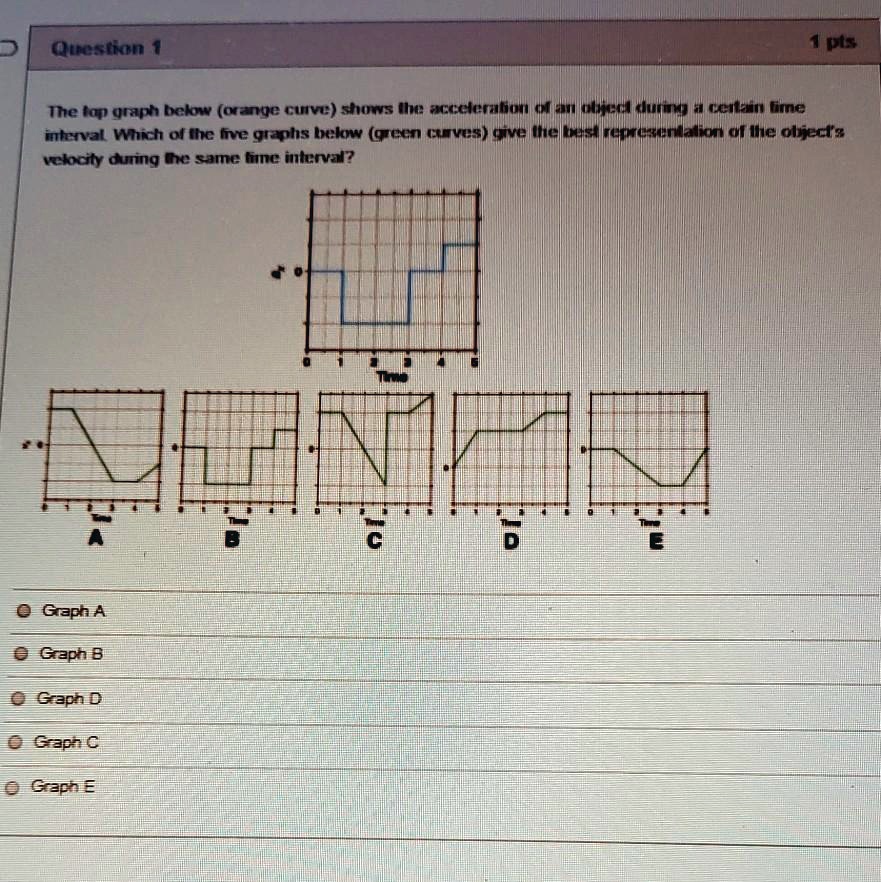

Question 1 1 pts The top graph below (orange curve) shows the acceleration of an object during a certain time interval. Which of the five graphs below (green curves) give the best representation of the object's velocity during the same time interval? Time A C D Graph A Graph B Graph D Graph C Graph E E

          Question 1
1 pts
The top graph below (orange curve) shows the acceleration of an object during a certain time
interval. Which of the five graphs below (green curves) give the best representation of the object's
velocity during the same time interval?
Time
A
C
D
Graph A
Graph B
Graph D
Graph C
Graph E
E

Question 1
1 pts
The top graph below (orange curve) shows the acceleration of an object during a certain time
interval. Which of the five graphs below (green curves) give the best representation of the object's
velocity during the same time interval?
Time
A
C
D
Graph A
Graph B
Graph D
Graph C
Graph E
E

Added by Pamela B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supratim Pal

Step 1

Acceleration is the rate of change of velocity. So, if the acceleration is positive, the velocity is increasing, and if the acceleration is negative, the velocity is decreasing. Looking at the orange curve in the top graph, we can see that the acceleration is Show more…

Show all steps

Thanks for your feedback!

The top graph below (orange curve) shows the acceleration of an object during a certain time interval. Which of the five graphs below (green curves) gives the best representation of the object's velocity during the same time interval? Graph A Graph B Graph D Graph C Graph E
