Question 1 (25 marks) a. A small house needs 2.4kWh per day, all of which is used in the evening between the hours of 7 to 11pm. Using only 12V batteries, calculate the minimum rated Ahr of battery storage required to supply the load if the battery maximum depth of discharge is 60%. Assume battery temperature is 25°C. b. With the aid of a well labeled diagram, explain the principle of operation, from resource to electrical power, of a PV module. c. How does shading impact on I-V curves of a PV module with and without a bypass and blocking diode. d. Imagine a space station with a solar array measuring 10 meters by 10 meters. In full sunlight, how much solar energy is impinging on the array? If it can be converted to electrical energy at 28% efficiency, how much power is generated (in W)? [8 + 5 + 5 + 7 marks]

          Question 1 (25 marks)
a. A small house needs 2.4kWh per day, all of which is used in the evening between
the hours of 7 to 11pm. Using only 12V batteries, calculate the minimum rated
Ahr of battery storage required to supply the load if the battery maximum depth of
discharge is 60%. Assume battery temperature is 25°C.
b. With the aid of a well labeled diagram, explain the principle of operation, from
resource to electrical power, of a PV module.
c. How does shading impact on I-V curves of a PV module with and without a
bypass and blocking diode.
d. Imagine a space station with a solar array measuring 10 meters by 10 meters. In
full sunlight, how much solar energy is impinging on the array? If it can be
converted to electrical energy at 28% efficiency, how much power is generated
(in W)?
[8 + 5 + 5 + 7 marks]

Show more…

Question 1 (25 marks)
a. A small house needs 2.4kWh per day, all of which is used in the evening between
the hours of 7 to 11pm. Using only 12V batteries, calculate the minimum rated
Ahr of battery storage required to supply the load if the battery maximum depth of
discharge is 60%. Assume battery temperature is 25°C.
b. With the aid of a well labeled diagram, explain the principle of operation, from
resource to electrical power, of a PV module.
c. How does shading impact on I-V curves of a PV module with and without a
bypass and blocking diode.
d. Imagine a space station with a solar array measuring 10 meters by 10 meters. In
full sunlight, how much solar energy is impinging on the array? If it can be
converted to electrical energy at 28% efficiency, how much power is generated
(in W)?
[8 + 5 + 5 + 7 marks]

Added by Christina M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Umar Sohail Qureshi

11/10/2021

Step 1

4 kWh/day Battery voltage = 12V Depth of discharge = 60% Show more…

Show all steps

lock

Thanks for your feedback!

Question 1 (25 marks) a. A small house needs 2.4kWh per day, all of which is used in the evening between the hours of 7 to l lpm.Using only 12V batteries,calculate the minimum rated Ahr of battery storage required to supply the load if the battery maximum depth of discharge is 60%. Assume battery temperature is 25C. b. With the aid of a well labeled diagram, explain the principle of operation, from resource to electrical power, of a PV module. c. How does shading impact on I-V curves of a PV module with and without a bypass and blocking diode. d. Imagine a space station with a solar array measuring 10 meters by 10 meters. In full sunlight, how much solar energy is impinging on the array? If it can be converted to electrical energy at 28% efficiency, how much power is generated (in W)? [8 + 5 + 5 +7 marks]

Play audio

Feedback

Powered by NumerAI

Umar Sohail Qureshi and 89 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Recommended Videos

Recommended Textbooks

Transcript

00:01 For this question, we're considering the energy coming from the sun to have an intensity i of 1 ,000 watts per meter squared.

00:08 But our solar panel can only convert about 10 % of that.

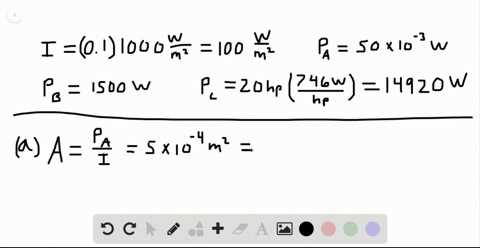

00:10 So the intensity for our solar panel i is 0 .1 times that 1 ,000 watt per meter squared or 100 watts per meter squared.
