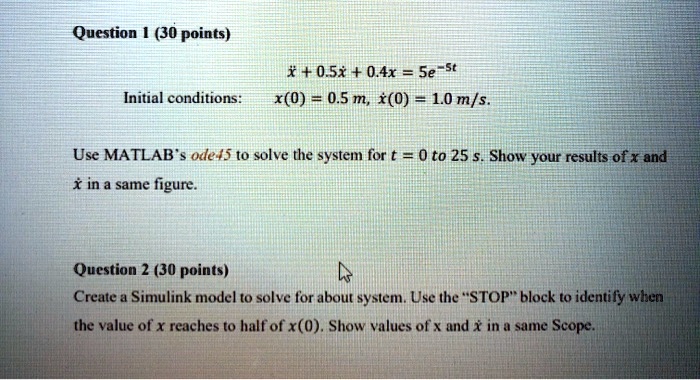

Question 1 (30 points) Initial conditions: $\ddot{x} + 0.5\dot{x} + 0.4x = 5e^{-5t}$ $x(0) = 0.5 \text{ m}, \dot{x}(0) = 1.0 \text{ m/s}$. Use MATLAB's ode45 to solve the system for $t = 0$ to 25 s. Show your results of $x$ and $\dot{x}$ in a same figure. Question 2 (30 points) Create a Simulink model to solve for about system. Use the \"STOP\" block to identify when the value of $x$ reaches to half of $x(0)$. Show values of $x$ and $\dot{x}$ in a same Scope.
Added by Brittney J.
Close
Step 1
Let's define the system as follows: dx/dt = X dX/dt = -k*x where x is the position and X is the velocity, and k is a constant. Step 2: Define the constants and initial conditions Given that x₀₀.â‚…mâ‚€ = 1.0 m/s, we can set x(0) = 0.5 m and X(0) = 1.0 Show more…
