Question 1 A(n) ____ process is a process where the gain at any point of the input range is the same as the gain at any other point.
Added by Tamara B.
Close
Step 1
This is the definition of a linear process. Show more…
Show all steps
Your feedback will help us improve your experience
James Kiss and 63 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

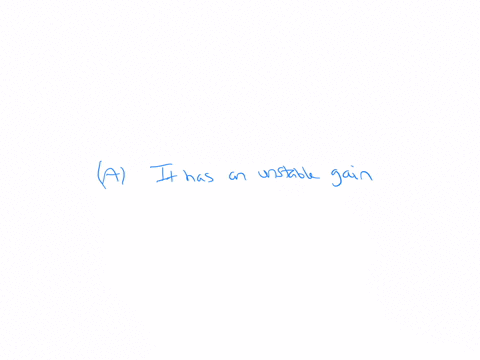

Which one is not a property of a real amplifier? a. It has an unstable gain. b. It has a linear transfer function. c. Its transfer band has a lower and an upper cut-off frequency. d. I distorts the output signal.
James K.

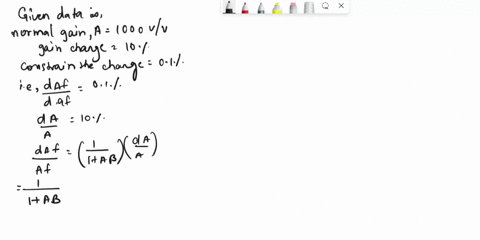

2) An amplifier with a nominal gain A = 1000 V/V exhibits a gain change of 10% as the operating temperature changes from 25°C to 75°C. If it is required to constrain the change to 0.1% by applying negative feedback, what is the largest closed-loop gain possible? If three of these feedback amplifiers are placed in cascade, what overall gain and gain stability are achieved? 3) Consider the op-amp circuit shown in the figure below, where the op amp has infinite input resistance and zero output resistance but finite open-loop gain A. (a) Convince yourself that β = R1/(R1+R2) (b) If R1 = 10 kΩ, find R2 that results in Af = 10 V/V for the following three cases: (i) A = 1000 V/V (ii) A = 200 V/V (iii) A = 15 V/V (c) For each of the three cases in (b), find the percentage change in Af that results when A decreases by 20%. Comment on the results.
