Question 1 Design a cotter joint as shown in the figure to support a load varying 45 kN in tension and 45 kN in compression. The allowable shear stress is 50 MPa and crushing stress 90 MPa. The allowable tensile and compressive stress is 80 MPa. Let the thickness of the cotter be the diameter of the spigot divided by four and the length be three times the rod diameter. Let the length e be 1.2 times the rod diameter.

          Question 1
Design a cotter joint as shown in the figure to support a load varying 45 kN in tension and
45 kN in compression. The allowable shear stress is 50 MPa and crushing stress 90 MPa.
The allowable tensile and compressive stress is 80 MPa. Let the thickness of the cotter be the
diameter of the spigot divided by four and the length be three times the rod diameter. Let the
length e be 1.2 times the rod diameter.

Question 1
Design a cotter joint as shown in the figure to support a load varying 45 kN in tension and
45 kN in compression. The allowable shear stress is 50 MPa and crushing stress 90 MPa.
The allowable tensile and compressive stress is 80 MPa. Let the thickness of the cotter be the
diameter of the spigot divided by four and the length be three times the rod diameter. Let the
length e be 1.2 times the rod diameter.

Added by Melissa A.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Ashar Tanveer

Step 1

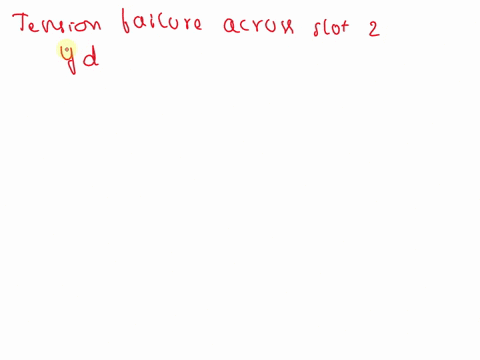

Determine the diameter of the spigot (d3): Since the thickness of the cotter is the diameter of the spigot divided by four, we can assume the thickness (t) to be d3/4. Show more…

Show all steps

Thanks for your feedback!

Question 1 Design a cotter joint as shown in the figure to support a load varying 45 kN in tension and 45 kN in compression: The allowable shear stress is 50 MPa and crushing stress 90 MPa_ The allowable tensile and compressive stress is 80 MPa: Let the thickness ofthe cotter be the diameter of the spigot divided by four and the length be three times the rod diameter: Let the length e be 1.2 times the rod diameter: Clearance (2 t0 } mm) Socket Cotter Socket collar d3 Spigot
