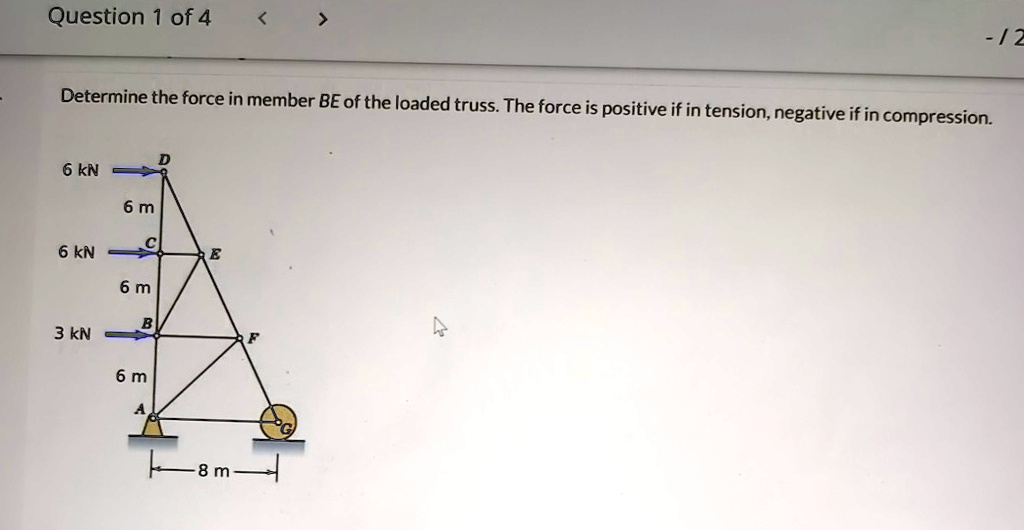

Determine the force in member BE of the loaded truss. The force is positive if in tension, negative if in compression.
6 kN
D
6 m
6 kN
C
E
6 m
3 kN
B
F
6 m
A
8 m

question 1 of 4 2 determine the force in member be of the loaded truss the force is positive if in tension negative if in compression 6 kn d 6 m 6 kn c e 6 m 3 kn b f 6 m a 8 m 35016

Added by John S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

11/27/2023

Step 1

We are given a truss structure with applied horizontal forces at points D, C, and B. The vertical distances between points A, B, C, and D are all 6 m. The horizontal distance between the supports A and G is 8 m. We need to determine the force in member BE. The Show more…
