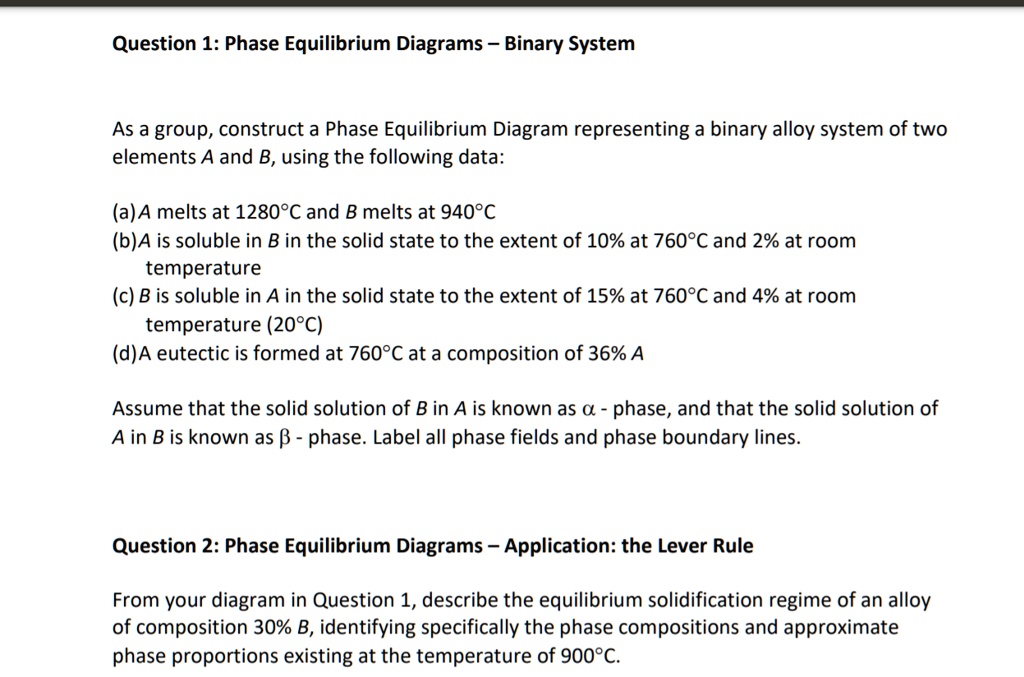

Question 1: Phase Equilibrium Diagrams – Binary System As a group, construct a Phase Equilibrium Diagram representing a binary alloy system of two elements A and B, using the following data: (a) A melts at 1280°C and B melts at 940°C (b) A is soluble in B in the solid state to the extent of 10% at 760°C and 2% at room temperature (c) B is soluble in A in the solid state to the extent of 15% at 760°C and 4% at room temperature (20°C) (d) A eutectic is formed at 760°C at a composition of 36% A Assume that the solid solution of B in A is known as ? - phase, and that the solid solution of A in B is known as ? - phase. Label all phase fields and phase boundary lines. Question 2: Phase Equilibrium Diagrams – Application: the Lever Rule From your diagram in Question 1, describe the equilibrium solidification regime of an alloy of composition 30% B, identifying specifically the phase compositions and approximate phase proportions existing at the temperature of 900°C.
Added by Connie H.
Close
Step 1
- A melts at 1280°C. - B melts at 940°C. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 80 other Chemistry 101 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
FOR ALL THREE MULTIPLE CHOICE, THERE CAN BE MULTIPLE ANSWERS!!! 1. When we alloy two elements that have different crystal structures, which of the following could be true? A. They exhibit an isomorphous phase diagram B. They exhibit limited solid solubility C. They can exhibit a eutectic phase transformation D. There can be intermetallic compounds 2. From an equilibrium phase diagram, we can determine the following: A. The number and types of phases present B. The composition of each phase C. The amount of each phase D. Transformation rates 3. Once a system is at a state of equilibrium, a shift from equilibrium may result by alternation of which of the following? A. Pressure B. Temperature C. Composition D. None of the above
Raghvendra S.

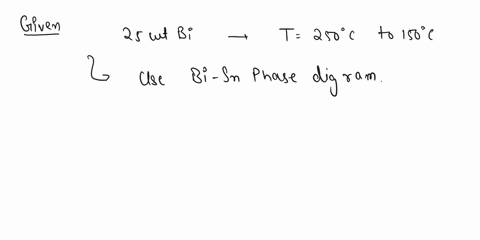

a. What are the compositions of the phases present at equilibrium when you take a liquid with composition 25 wt% Bi and cool it from 250°C to 150°C? b. Calculate the weight fraction of each phase from part a. c. Sketch the microstructure of the 25 wt% Bi sample at each of the following temperatures (assume slow cooling). Your sketches should be representative of how much of each phase is present. -200°C -100°C -25°C
Adi S.
Recommended Textbooks
Chemistry: Structure and Properties
Chemistry The Central Science
Chemistry
Transcript
Watch the video solution with this free unlock.
EMAIL
PASSWORD
