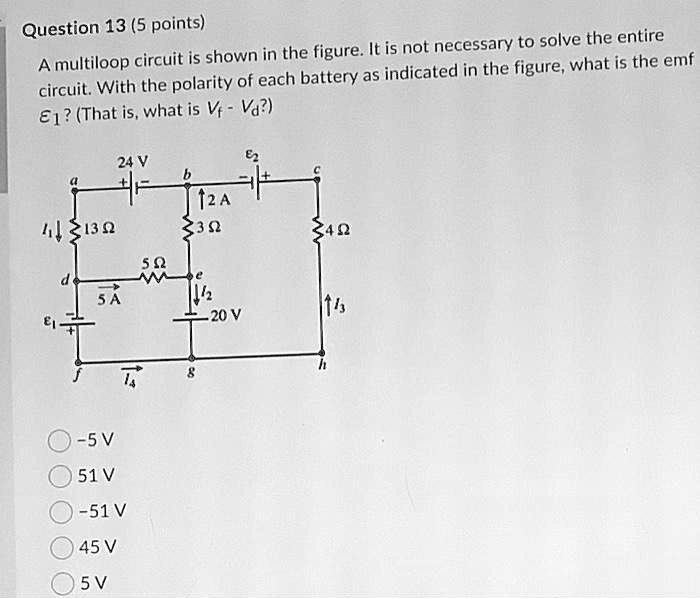

Question 13 (5 points) A multiloop circuit is shown in the figure. It is not necessary to solve the entire circuit. With the polarity of each battery as indicated in the figure, what is the emf ??? (That is, what is V_f - V_d?) -5 V 51 V -51 V 45 V 5 V
Added by Christopher B.
Close
Step 1
** Show more…
Show all steps
Your feedback will help us improve your experience
Sikandar Baig and 94 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

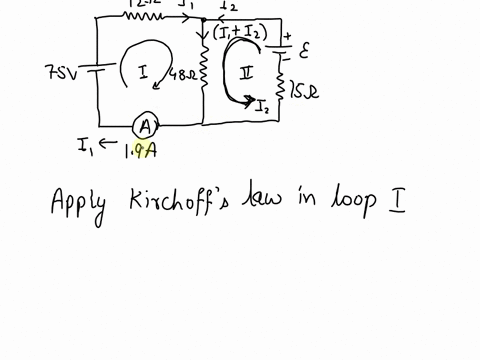

Item 5 Part A Find the emf (ε) of the battery. In the circuit shown in the figure (Figure 1), both batteries have insignificant internal resistance, and the idealized ammeter reads 1.90 A in the direction shown. Part B Is the polarity shown correct? yes no
Supreeta N.
In Diagram A below, R1 = 6.00 ̱, R2 = R3 = 12.0 ̱, and R4 = 8.0 ̱. The ideal battery has emf ̵ = 12.0 V. What is the total equivalent resistance in the circuit? Diagram B is a hint for Diagram A.
Sahil K.
(II) For the circuit shown in Fig. 19-55, find the potential difference between points a and b. Each resistor has $R =$ 160 $\Omega$ and each battery is 1.5 V. FIGURE 19–55 Problem 27. (CAN'T COPY THE FIGURE)
