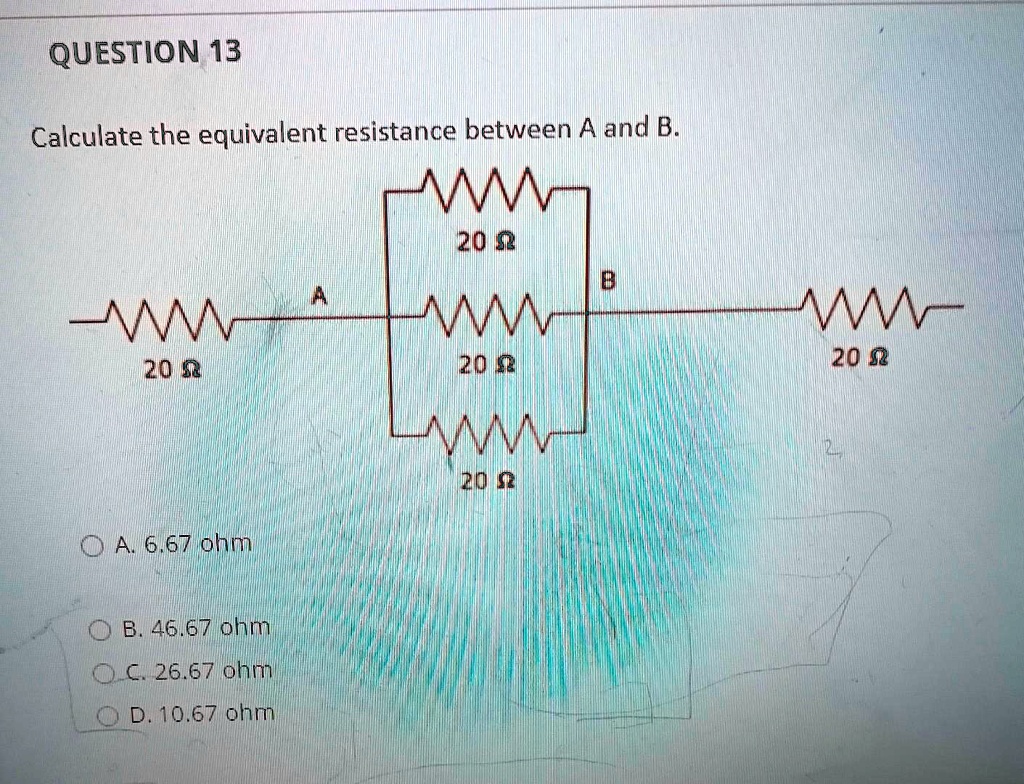

Calculate the equivalent resistance between A and B. A. 6.67 ohm B. 46.67 ohm C. 26.67 ohm D. 10.67 ohm
Added by Miguel -Ngel R.
Close
Step 1
The description seems to imply a combination of resistors in series and parallel, but without a clear diagram, we'll assume a common scenario where there are resistors in both series and parallel configurations. Given the options and the values, it's likely that Show more…
Show all steps
Your feedback will help us improve your experience
Prem Bijarniya and 85 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

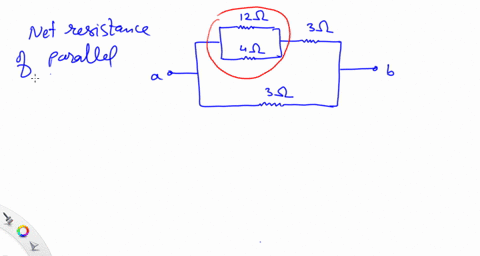

Determine the equivalent resistance between points $a$ and $b$ (A) 0.25$\Omega$ (B) 0.333$\Omega$ (C) 1.5$\Omega$ (D) 2$\Omega$

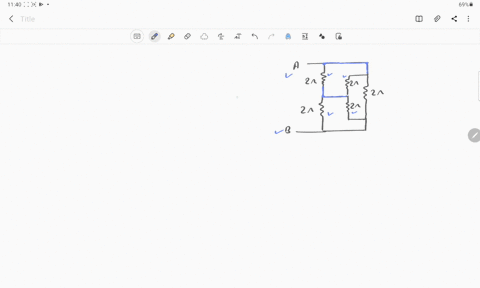

Find the equivalent resistance across $A B$ (A) $1 \Omega$ (B) $2 \Omega$ (C) $3 \Omega$ (D) $4 \Omega$
(a) Find the equivalent resistance between points $A$ and $B$ for the combination of resistors shown. (b) What is the potential difference across each of the $4.0-\Omega$ resistors? (c) What is the current in the $3.0-\Omega$ resistor? (FIGURE CAN'T COPY)
