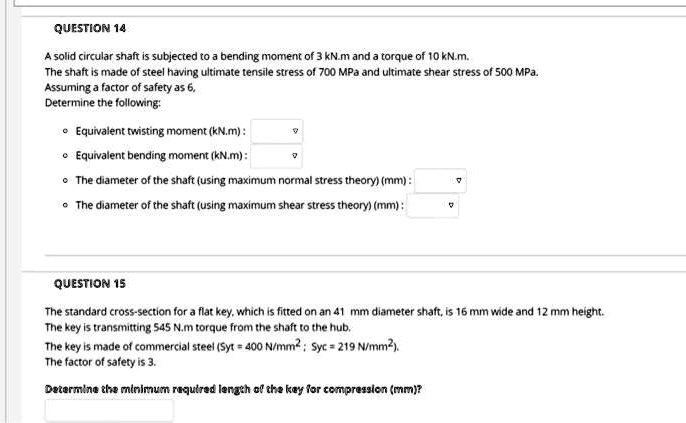

QUESTION 14 A solid circular shaft is subjected to a bending moment of 3 kN.m and a torque of 10 kN.m. The shaft is made of steel having ultimate tensile stress of 700 MPa and ultimate shear stress of 500 MPa. Assuming a factor of safety as 6, Determine the following: • Equivalent twisting moment (kN.m) : • Equivalent bending moment (kN.m) : • The diameter of the shaft (using maximum normal stress theory) (mm) : • The diameter of the shaft (using maximum shear stress theory) (mm) : QUESTION 15 The standard cross-section for a flat key, which is fitted on an 41 mm diameter shaft, is 16 mm wide and 12 mm height. The key is transmitting 545 N.m torque from the shaft to the hub. The key is made of commercial steel (Syt = 400 N/mm² ; Syc = 219 N/mm²). The factor of safety is 3. Determine the minimum required length of the key for compression (mm)?
Added by Richard A.
Close
Step 1
Calculate the equivalent twisting moment: Mtw = (545 N.m) (16 mm) (12 mm) = 9,000 N.m Show more…
Show all steps
