Question

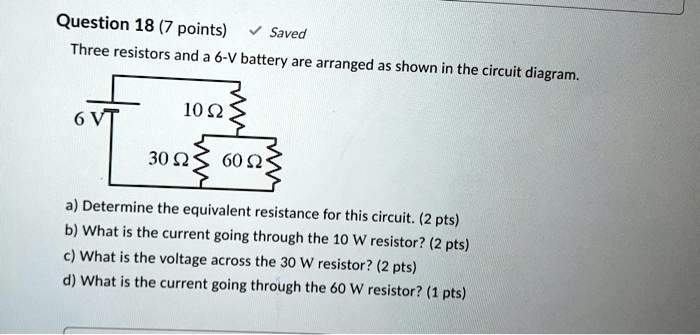

Three resistors and a 6-V battery are arranged as shown in the circuit diagram. 6 V 10 ? 30 ? 60 ? a) Determine the equivalent resistance for this circuit. (2 pts) b) What is the current going through the 10 ? resistor? (2 pts) c) What is the voltage across the 30 ? resistor? (2 pts) d) What is the current going through the 60 ? resistor? (1 pts)

          Three resistors and a 6-V battery are arranged as shown in the circuit diagram.

6 V
10 ?
30 ?
60 ?

a) Determine the equivalent resistance for this circuit. (2 pts)
b) What is the current going through the 10 ? resistor? (2 pts)
c) What is the voltage across the 30 ? resistor? (2 pts)
d) What is the current going through the 60 ? resistor? (1 pts)

Three resistors and a 6-V battery are arranged as shown in the circuit diagram.

6 V
10 ?
30 ?
60 ?

a) Determine the equivalent resistance for this circuit. (2 pts)
b) What is the current going through the 10 ? resistor? (2 pts)
c) What is the voltage across the 30 ? resistor? (2 pts)
d) What is the current going through the 60 ? resistor? (1 pts)

Added by Scott C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Mrinal R

03/23/2022

Step 1

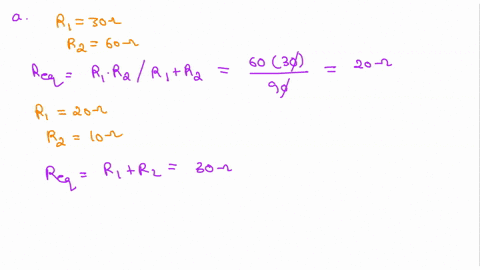

Step 1: Calculate the equivalent resistance for the circuit: Given resistors: 10 ohms, 30 ohms, 60 ohms The 30 ohm and 60 ohm resistors are in parallel, so: 1/Rp = 1/30 + 1/60 Rp = 30*60 / (30 + 60) Rp = 20 ohms Total equivalent resistance = 20 ohms + 10 ohms = 30 Show more…

Show all steps

Thanks for your feedback!

Three resistors and a 6-V battery are arranged as shown in the circuit diagram. a) Determine the equivalent resistance for this circuit. (2 pts) b) What is the current going through the 10 Ω resistor? (2 pts) c) What is the voltage across the 30 Ω resistor? (2 pts) d) What is the current going through the 60 Ω resistor? (1 pts)
