Question 2 0.5 Po If two resistors connected in series, then the power delivered to the circuit by the voltage source is higher than the power dissipated by the resistors. A True B False
Added by Jose B.
Close
Step 1
Step 1: The question asks whether the power delivered by the voltage source to a series circuit with two resistors is higher than the power dissipated by the resistors. Show more…
Show all steps
Your feedback will help us improve your experience
Maitreya E and 73 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
III. MULTIPLE CHOICE 10 V 2 ̩̐ 6 ̩̐ 100 V 200 ̩̐ 8. In the circuit shown above, what is the current through the 2-ohm resistor? A 0.2 A C 0.8 A B 5.0 A D 8.0 A 9. How much power is dissipated by the resistor in the circuit shown above? A 25 watts C 50 watts B 100 watts D 800 watts IV. SOLVING CIRCUITS 10. A 4 ̩̐ and a 6 ̩̐ resistor are connected in series, the current is measured to be 4 A. (a) Draw a diagram of this circuit. (b) What is the voltage drop across the 4 ̩̐ resistor? (c) What is the voltage drop across the 6 ̩̐ resistor? (d) What is the total voltage of the power source? (e) What is the total power dissipated by the circuit?
Maitreya E.
Justin S.

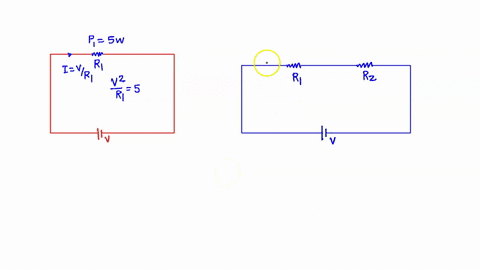

A single resistor (R1) is connected to an ideal battery (V) and dissipates 5W of power. A second resistor (R2) is then connected in series with the first resistor to the same battery. Which of the following is true about the power dissipated in R1 once it is in the series circuit with the second one?
