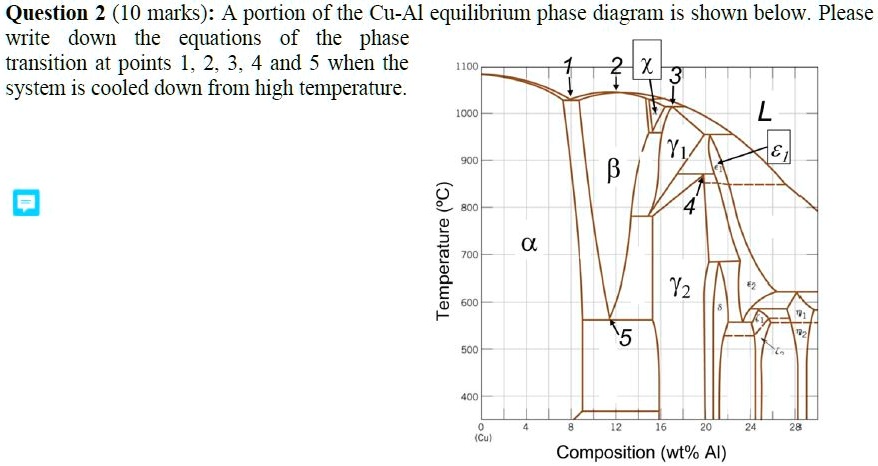

A portion of the Cu-Al equilibrium phase diagram is shown below. Please write down the equations of the phase transition at points 1, 2, 3, 4 and 5 when the system is cooled down from high temperature.
Added by Jason G.
Close
Step 1
Point 1: This point represents the liquidus line, where the liquid phase starts to solidify into a solid phase (α-phase) upon cooling. The equation for this phase transition can be written as: L -> α Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 56 other Chemistry 101 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Figure 4: Al-Cu phase diagram; shows the phase diagram for part of the aluminum-copper alloy system. Describe in one or two sentences the intermediate compound CuAl2 and explain why it appears in its pure form on the phase diagram in a very narrow band.
Adi S.
The copper-silver phase diagram. An alloy containing 85 wt% Ag - 15 wt % Cu is slowly cooled from a temperature of 900 °C. a) Mark the starting point of the cooling process on the diagram. (0.5 points) b) Is the alloy hypo or hypereutectic? c) What is the composition of the first solid particles that form and at what temperature they first form? (1 point) d) What is the chemical composition of the phases present at 780 °C + ΔT? (2 points) e) At 780 °C + ΔT, what is the weight percent of proeutectic β present in the mixture? (2 points) f) What is the chemical composition of the phases present at 780 °C - ΔT? (2 points) g) At 780 °C - ΔT, what is the weight percent of α and β present in the mixture? (2 points)
Given a copper-silver alloy with a composition of 50 wt% Ag- 50 wt% Cu, use the Ag-Cu phase diagram to answer the following questions: (a) Determine Wa and Wp just below the eutectic temperature. (b) Determine Wa and Wp at room temperature. (c) Is it possible for the α and β phases to have mass fractions of 0.60 and 0.40, respectively, at equilibrium? Explain why or why not. Composition (at% Ag) 20 40 60 80 100 1200 Liquid 1000 Liquidus Solidus 779°C (Te) 800 8.0 (Ca E) 71.9 (Ce) 91.2 (CBE) 600 Solvus 400 200 0 20 40 60 80 100 (Cu) Composition (wt% Ag) (Ag)
