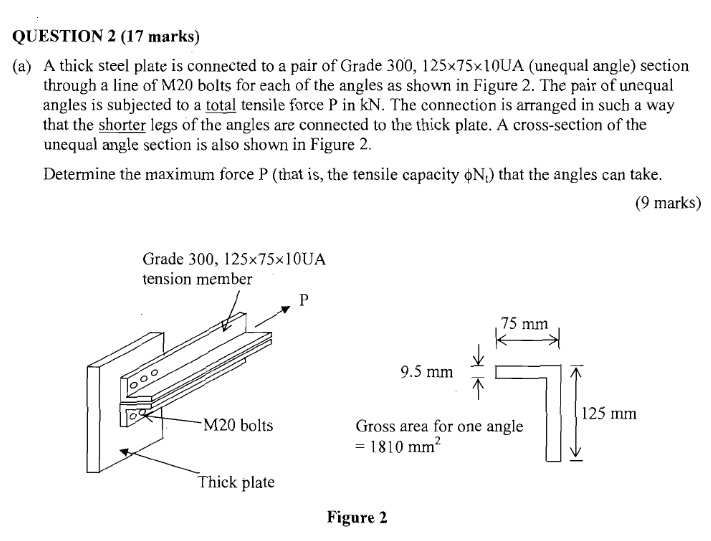

QUESTION 2 (17 marks) (a) A thick steel plate is connected to a pair of Grade 300, 125×75×10UA (unequal angle) section through a line of M20 bolts for each of the angles as shown in Figure 2. The pair of unequal angles is subjected to a total tensile force P in kN. The connection is arranged in such a way that the shorter legs of the angles are connected to the thick plate. A cross-section of the unequal angle section is also shown in Figure 2. Determine the maximum force P (that is, the tensile capacity ?Nt) that the angles can take. (9 marks) Grade 300, 125×75×10UA tension member P M20 bolts Thick plate 75 mm 9.5 mm 125 mm Gross area for one angle = 1810 mm² Figure 2
Added by Angela C.
Close
Step 1
The maximum force that the angles Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 57 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A square steel plate is 13.0 cm on a side and 0.600 cm thick. Assume that the plate is oriented with the square faces horizontal to the ground. As shown in (Figure 1) a force of magnitude 1.10×106 N is applied to both the top and bottom surfaces of the plate (the square sides). Each of the forces is applied in a direction parallel to the surface they are exerted on, and they point in opposite directions. Find the shear strain caused by these forces. Note that the shear modulus of steel in pascals is 7.50×1010 Pa. Express the strain numerically to three significant figures.
Pranay S.
Figure 1 shows a pinned base plate connection for the steel column of 310UC96.8 (Grade 300), which is subjected to axial tensile force (Nt* = 100 kN) and shear forces (Vx* = 25 kN) and (Vy* = 20 kN). The end of the steel column is cold sawn. 6 mm SP fillet weld was used along column section profile. The steel column is supported by a concrete foundation. Design information of the base plate is given below: Design Information: - The compressive strength of concrete, fc' = 25MPa - The cross-sectional area of base plate, A1 = 400 mm x 400 mm - The cross-sectional area of concrete foundation, A2 = 800 mm x 800 mm - Four M16 bolts (Grade 8.8/s) are used for the connection - Tensile strength of bolt (fuf) = 830MPa - M16 bolt axial tension capacity (ΦNtf) =104 kN - M16 bolt (Thread excluded from shear plane) shear capacity (ΦVvf) =82.7 kN - Gauge of anchor bolts, Sg= 100 mm - Pitch of anchor bolts, Sp= 200 mm - Yield strength of base plate, fyi= 250 MPa - Thickness of base plate, ti= 16 mm - Friction co-efficient, μ= 0.55 - Weld capacity (ΦVw)= 0.835 kN/mm Figure 1: Pinned base plate connection Check whether the bolt satisfies the requirement for combined tension and shear.
