Question 2 A composite stepped bar consists of two parts as shown in below figure. After the application of the tensile load of 30 kN, the extension observed is 0.372 mm. 2.1 Find the stress in each material 2.2 Find the Young's modulus of the brass, if that of steel is 200 GPa. 2.3 What will the extension be of each material?

          Question 2
A composite stepped bar consists of two parts as shown in below figure. After the application of the tensile load of 30 kN, the extension observed is 0.372 mm.
2.1 Find the stress in each material
2.2 Find the Young's modulus of the brass, if that of steel is 200 GPa.
2.3 What will the extension be of each material?

Question 2
A composite stepped bar consists of two parts as shown in below figure. After the application of the tensile load of 30 kN, the extension observed is 0.372 mm.
2.1 Find the stress in each material
2.2 Find the Young's modulus of the brass, if that of steel is 200 GPa.
2.3 What will the extension be of each material?

Added by Shannon W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

08/29/2023

Step 1

The total extension due to the load is given, and we need to find the stress in each material, the Young's modulus of brass (given that of steel), and the extension in each material. Show more…

Show all steps

Thanks for your feedback!

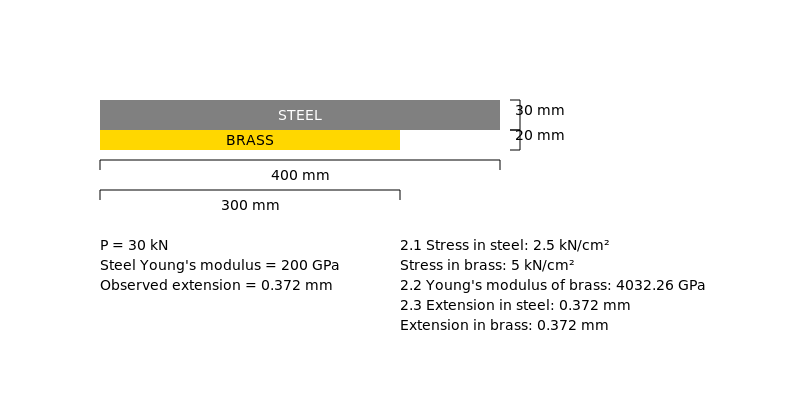

Question 2: A composite stepped bar consists of two parts as shown in below figure. After the application of the tensile load of 30 kN, the extension observed is 0.372 mm. 2.1 Find the stress in each material (6) 2.2 Find the Young's modulus of the brass, if that of steel is 200 GPa. (3) 2.3 What will the extension be of each material? (4) 30 mm ϕ 20 mm ϕ STEEL BRASS P = 30 kN 400 mm 300 mm [13]
