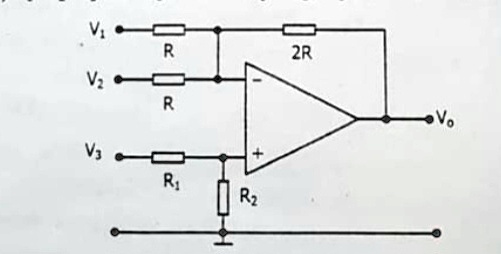

Question 2 - The operational amplifier used in Figure 2 is ideal. a) Calculate Vo in terms of resistors and voltages. b) When V1 = V2 = V3, what should be the ratio of R2 / R1 to ensure Vo = 0? $V_1$, $R$, $2R$, $V_2$, $R$, $V_3$, $R_1$, $R_2$, $V_o$
