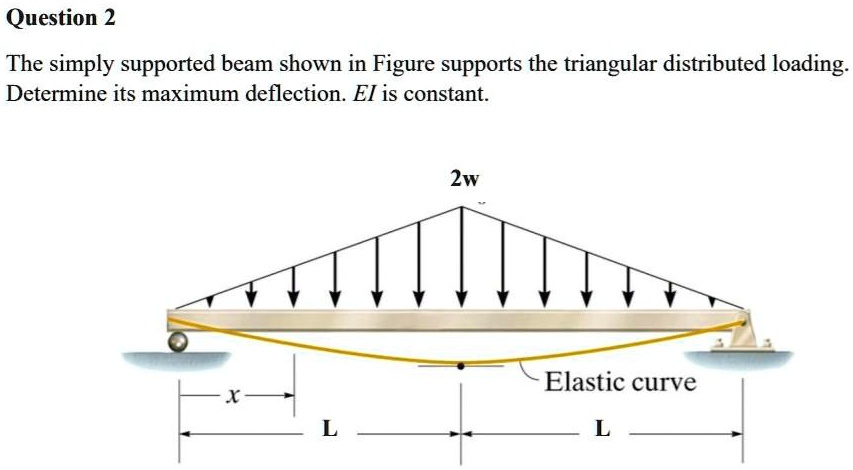

Question 2 The simply supported beam shown in Figure supports the triangular distributed loading. Determine its maximum deflection. $EI$ is constant.
Added by Michelle J.
Close
Step 1
The total load on the beam is the area of the triangle, which is (1/2)*base*height = (1/2)*L*2w = wL. This load is distributed evenly between the two supports, so each support carries a load of (1/2)*wL. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

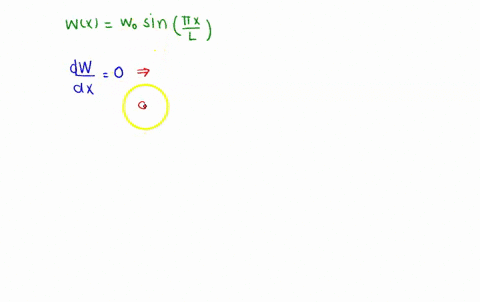

QUESTION 3 (20 marks) a) A beam of length L is embedded at its left end and simply supported at its right end. Find the deflection of the beam if the load distribution w(x) along its length is given by w(x) = w0 sin(πx/L), w0 is a constant.
Keerti J.

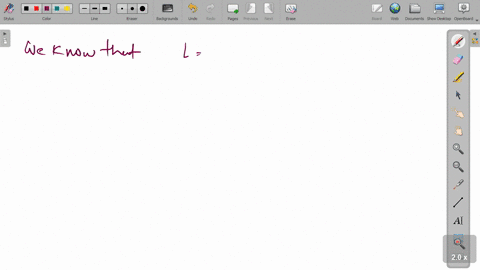

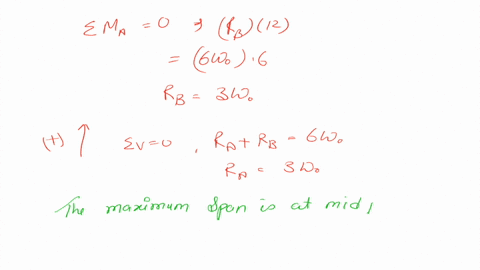

The beam has a rectangular cross section with $b=4$ in. Determine the largest maximum intensity $w_{0}$ of the triangular distributed load that can be supported if the allowable bending stress is $\sigma_{\text {allow }}=1.40 \mathrm{ksi}$.
Shaiju T.
