Question 3 (0.5 points) B P A C 800 mm 600 mm Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB. If a force is applied to the end B of the member and causes it to rotate by $\theta$ = 2.16°, determine the normal strain in the cable. Originally the cable is unstretched. Report your answer in units of mm/mm. Your Answer:

          Question 3 (0.5 points)
B
P
A
C
800 mm
600 mm
Part of a control linkage for an airplane consists of a rigid member CB and a
flexible cable AB. If a force is applied to the end B of the member and causes it
to rotate by $\theta$ = 2.16°, determine the normal strain in the cable. Originally the
cable is unstretched. Report your answer in units of mm/mm.
Your Answer:

Question 3 (0.5 points)
B
P
A
C
800 mm
600 mm
Part of a control linkage for an airplane consists of a rigid member CB and a
flexible cable AB. If a force is applied to the end B of the member and causes it
to rotate by θ = 2.16°, determine the normal strain in the cable. Originally the
cable is unstretched. Report your answer in units of mm/mm.
Your Answer:

Added by Luc-A W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

08/30/2023

Step 1

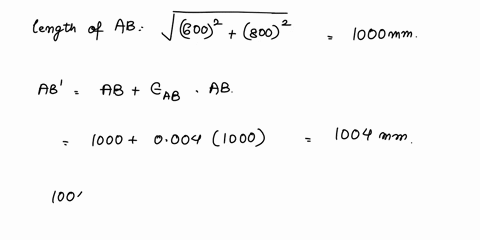

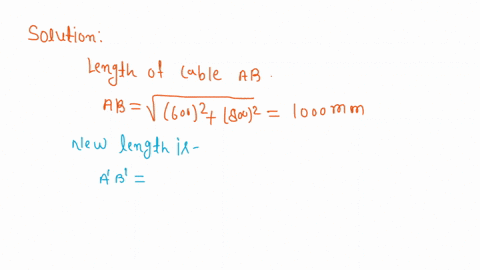

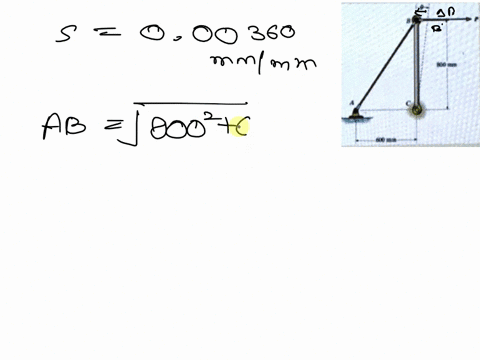

We can find this length using the Pythagorean theorem: $$AB = \sqrt{600^2 + 800^2} = 1000 \text{ mm}$$ Show more…
