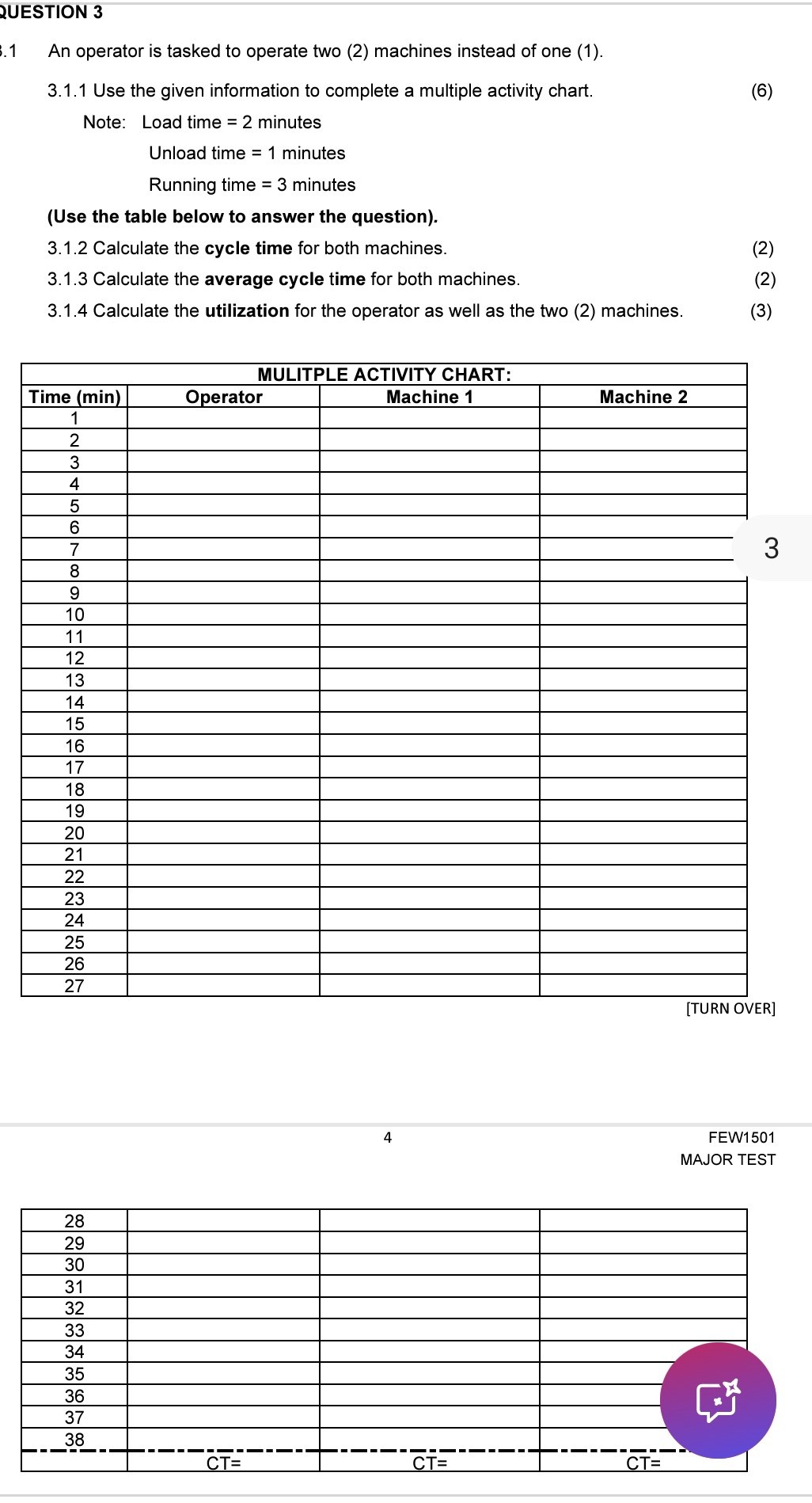

QUESTION 3
1 An operator is tasked to operate two (2) machines instead of one (1).
3.1.1 Use the given information to complete a multiple activity chart.
(6)
Note: Load time \( =2 \) minutes
Unload time \( =1 \) minutes
Running time \( =3 \) minutes
(Use the table below to answer the question).
3.1.2 Calculate the cycle time for both machines.
(2)
3.1.3 Calculate the average cycle time for both machines.
(2)
3.1.4 Calculate the utilization for the operator as well as the two (2) machines.
(3)
\begin{tabular}{|c|c|c|c|}
\hline \multicolumn{3}{|c|}{ MULITPLE ACTIVITY CHART: } \\
\hline Time (min) & Operator & Machine 1 & Machine 2 \\
\hline 1 & & & \\
\hline 2 & & & \\
\hline 3 & & & \\
\hline 4 & & & \\
\hline 5 & & & \\
\hline 6 & & & \\
\hline 7 & & & \\
\hline 8 & & & \\
\hline 9 & & & \\
\hline 10 & & & \\
\hline 11 & & & \\
\hline 12 & & & \\
\hline 13 & & & \\
\hline 14 & & & \\
\hline 15 & & & \\
\hline 16 & & & \\
\hline 17 & & & \\
\hline 18 & & & \\
\hline 19 & & & \\
\hline 20 & & & \\
\hline 21 & & & \\
\hline 22 & & & \\
\hline 23 & & & \\
\hline 24 & & & \\
\hline 25 & & & \\
\hline 26 & & & \\
\hline 27 & & & \\
\hline
\end{tabular}
[TURN OVER]
