Question

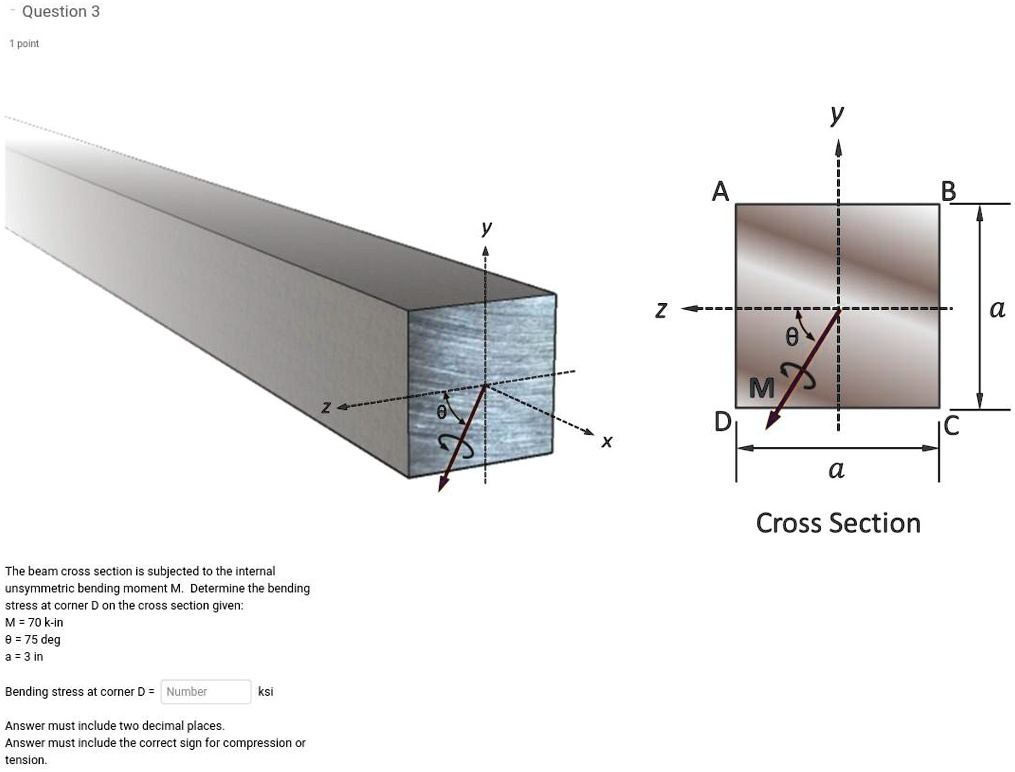

The beam cross section is subjected to the internal unsymmetric bending moment M. Determine the bending stress at corner D on the cross section given: M = 70 k-in ? = 75 deg a = 3 in Bending stress at corner D = Number ksi Answer must include two decimal places. Answer must include the correct sign for compression or tension.

          The beam cross section is subjected to the internal
unsymmetric bending moment M. Determine the bending
stress at corner D on the cross section given:
M = 70 k-in
? = 75 deg
a = 3 in
Bending stress at corner D = Number ksi
Answer must include two decimal places.
Answer must include the correct sign for compression or
tension.

The beam cross section is subjected to the internal
unsymmetric bending moment M. Determine the bending
stress at corner D on the cross section given:
M = 70 k-in
? = 75 deg
a = 3 in
Bending stress at corner D = Number ksi
Answer must include two decimal places.
Answer must include the correct sign for compression or
tension.

Added by Cameron B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

10/04/2023

Step 1

The given parameters are the bending moment M = 70 k-in, the angle e = 75 degrees, and the side length a = 3 in. The goal is to find the bending stress at corner D, considering the bending moment's direction and the geometry of the cross-section. Show more…
