Question. 3 A circular disc mounted on a shaft carries three attached masses of 4 kg, 3 kg and 2.5 kg at radial distances of 75 mm, 85 mm and 50 mm and at the angular positions of 45°, 135° and 240° respectively. The angular positions are measured counterclockwise from the reference line along the x-axis. Determine the amount of the counter mass at a radial distance of 75 mm required for the static balance. (20 Marks)

Name: question 3 a circular disc mounted on a shaft carries three attached masses of 4 kg 3 kg and 25 kg at radial distances of 75 mm 85 mm and 50 mm and at the angular positions of 45 135 and 240 62004
Uploaded: 2024-12-20T15:08:43-08:00
Duration: 1 min 26 s
Channel: Lien Le
Description: question 3 a circular disc mounted on a shaft carries three attached masses of 4 kg 3 kg and 25 kg at radial distances of 75 mm 85 mm and 50 mm and at the angular positions of 45 135 and 240 62004

          Question. 3

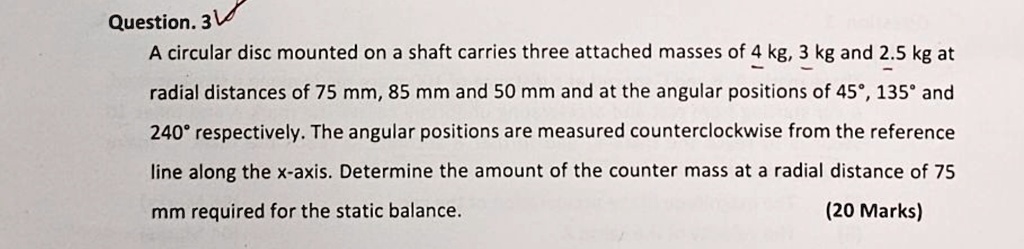

A circular disc mounted on a shaft carries three attached masses of 4 kg, 3 kg and 2.5 kg at
radial distances of 75 mm, 85 mm and 50 mm and at the angular positions of 45°, 135° and
240° respectively. The angular positions are measured counterclockwise from the reference
line along the x-axis. Determine the amount of the counter mass at a radial distance of 75
mm required for the static balance.
(20 Marks)

question 3 a circular disc mounted on a shaft carries three attached masses of 4 kg 3 kg and 25 kg at radial distances of 75 mm 85 mm and 50 mm and at the angular positions of 45 135 and 240 62004

Added by Gene Z.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Lien Le

12/20/2024

Step 1

Static balance means that the vector sum of all mass-radius products (centrifugal forces) is zero. Let's denote the masses as $m_1, m_2, m_3$ and their respective radial distances as $r_1, r_2, r_3$ and angular positions as $\theta_1, \theta_2, Show more…
